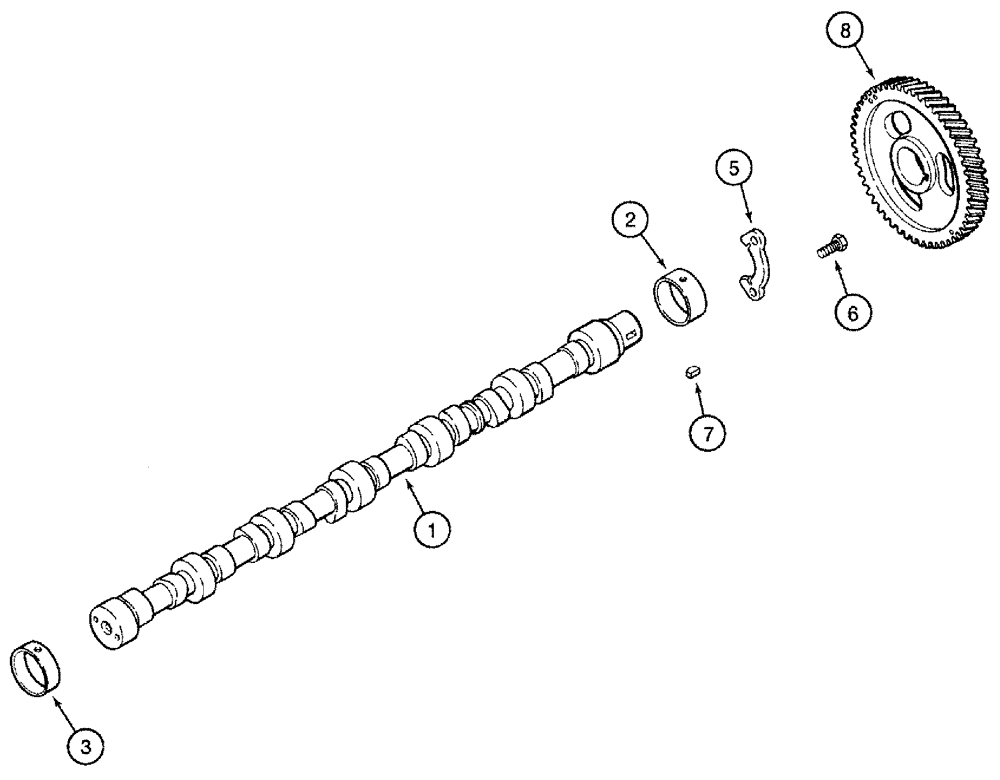

Запчасти Case IH 3185 (03-017) - CAMSHAFT (01) - ENGINE

1

J929886

CAMSHAFT

ENGINE

1шт.

1

J929886R

REMAN-CAMSHAFT

3185 PATRIOT SPRAYER, ENGINE (8/04-5/09)

1шт.

1

J929886C

CORE-CAMSHAFT

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

CAMSHAFT, FRONT

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, intermediate and rear, service repair only

6шт.

When the Intermediate and the Rear Cylinder Block Camshaft Bores Are Reamed in Engine Repair, Order and Instal Ref. 3, P/N J903242 Bushings

1шт.

5

J927155

SUPPORT

THRUST, CAMSHAFT

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

8

J929028

GEAR

GEAR - CAMSHAFT

1шт.
