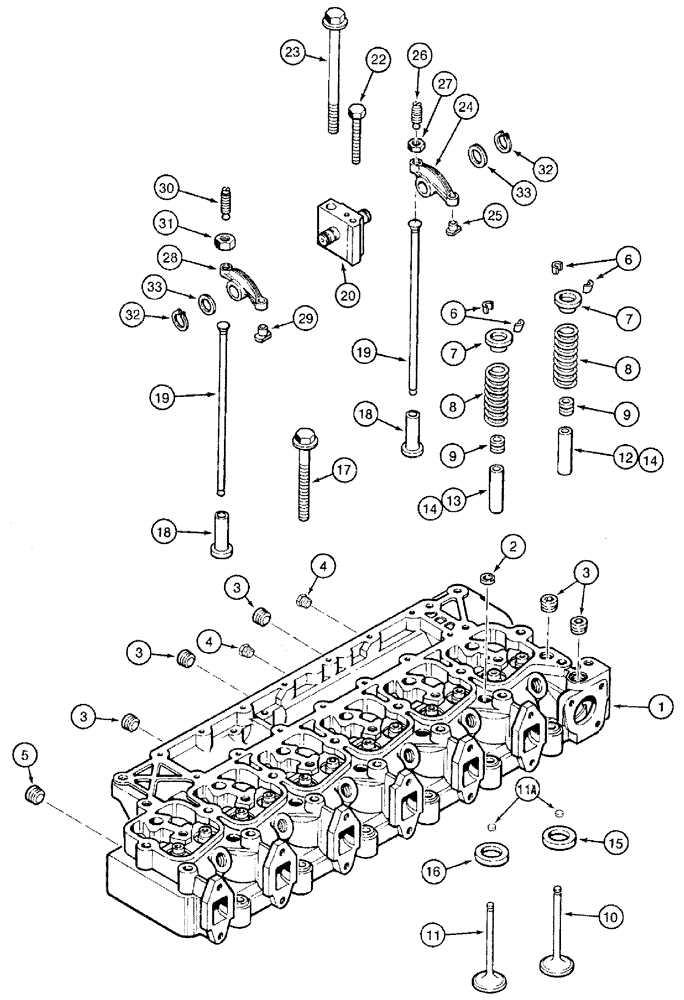

Запчасти Case IH 3185 (03-016) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - CYLINDER, WITHOUT VALVES

1шт.

1a

JR938656

CYLINDER HEAD

ASSEMBLY, WITH VALVES, REMANUFACTURED, NORTH AMERICA ONLY, COMPONENT PARTS SHOWN ON THIS PAGE DO NOT APPLY TO THE REMANUFACTURED ASSEMBLY

1шт.

1b

JC938656

CYLINDER HEAD

RETURN NUMBER - USE THIS PART NUMBER TO RETURN HEAD CORE FOR CREDIT WHEN USING A REMANUFACTURED ASSEMBLY

1шт.

1c

J938656

CYLINDER HEAD

ASSEMBLY, WITH VALVES

1шт.

2

A77782

PLUG

Expansion, 58 mm od

5шт.

3

444704

PLUG,Hex Soc, 1/2"-14

5шт.

One Removed to Install Temperature Sending Unit

1шт.

4

88071

PLUG

Hex Hd, 1/8"-27 NPTF

2шт.

5

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

6

CASJ900250

RETAINER

KEEPER - VALVE

24шт.

7

J935038

RETAINER

VALVE SPRING

12шт.

8

J932453

SPRING

VALVE

12шт.

9

J921640

SEAL

valve stem

12шт.

10

J920867

VALVE

INTAKE

6шт.

11

J920868

VALVE

EXHAUST

6шт.

11a

J910412

WEAR PAD

SERVICE REPAIR ONLY FOR VALVE STEM TIP

12шт.

12

J904408

GUIDE

VALVE, INTAKE, SERVICE REPAIR ONLY, 14 MM OD

6шт.

These Parts Are Semi-finished Valve Guides

1шт.

13

J904409

GUIDE

VALVE, EXHAUST, SERVICE REPAIR ONLY, 14 MM OD

6шт.

These Parts Are Semi-finished Valve Guides

1шт.

14

J906206

GUIDE

VALVE, INTAKE AND EXHAUST, SERVICE REPAIR ONLY, 11 MM OD

12шт.

These Parts Are Semi-finished Valve Guides

1шт.

15

J906854

SEAT, VALVE

INSERT, INTAKE VALVE, SERVICE REPAIR ONLY

6шт.

16

J904105

SEAT, VALVE

INSERT, EXHAUST VALVE, SERVICE REPAIR ONLY

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm

14шт.

18

J931623

TAPPET

VALVE, PUSH ROD

12шт.

19

J284377

PUSH ROD

ROCKER ARM

12шт.

20

J922488

SUPPORT

AND SHAFT ASSEMBLY - ROCKER ARM

6шт.

22

J901221

BOLT

HEX, 8 - 1.25 X 75 MM

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

6шт.

24

J910811

ROCKER

ARM ASSEMBLY, INTAKE

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT-ROCKER ARM

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

27

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

28

J910810

ROCKER

ARM ASSEMBLY , EXHAUST

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT-ROCKER ARM

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

31

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

32

J900242

SNAP RING

RETAINING, ROCKER ARM

12шт.

33

J900245

WASHER

THRUST, ROCKER ARM

12шт.
