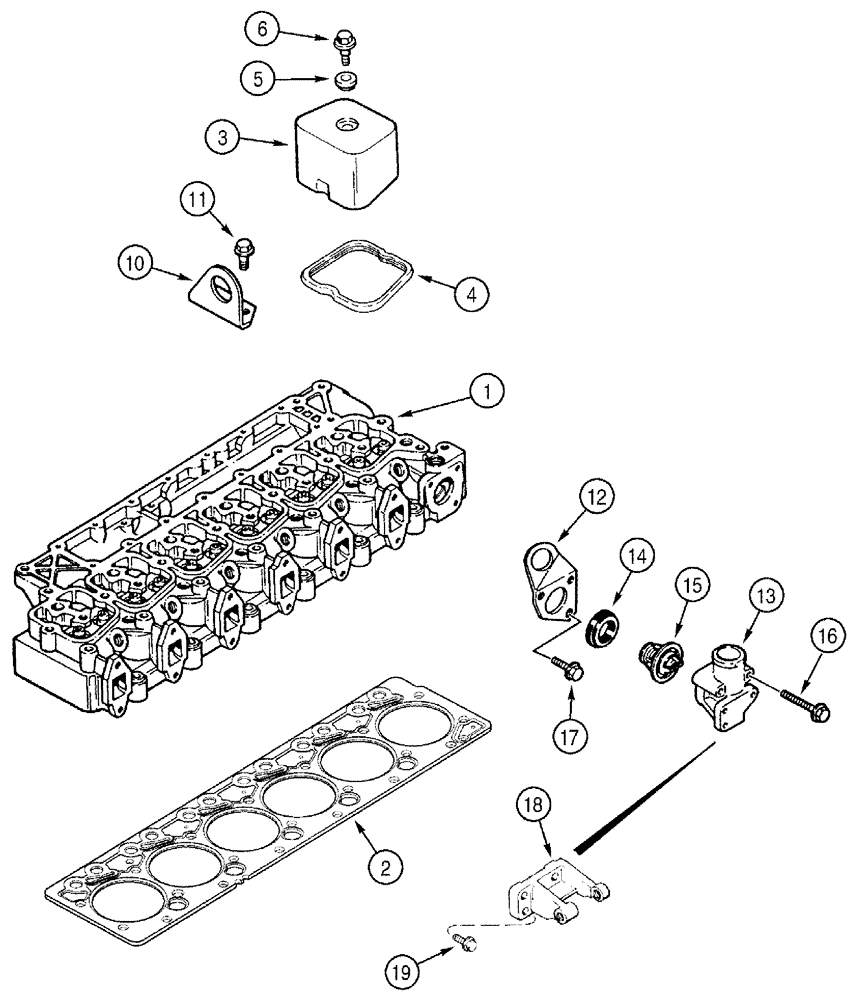

Запчасти Case IH 3185 (03-015[02]) - THERMOSTAT, HOUSING AND ALTERNATOR MOUNTING (01) - ENGINE

12

J903757

BRACKET

LIFTING, FRONT

1шт.

13

J285102

HOUSING

THERMOSTAT

1шт.

13a

A77736

THERMOSTAT

Kit, Coolant

1шт.

14

J923331

GASKET

THERMOSTAT HOUSING

1шт.

15

NSS

NOT SOLD SEPARAT

THERMOSTAT - COOLANT

1шт.

16

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

17

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

18

J287096

SUPPORT

ALTERNATOR MOUNTING

1шт.

18a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

Not Shown

1шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.
