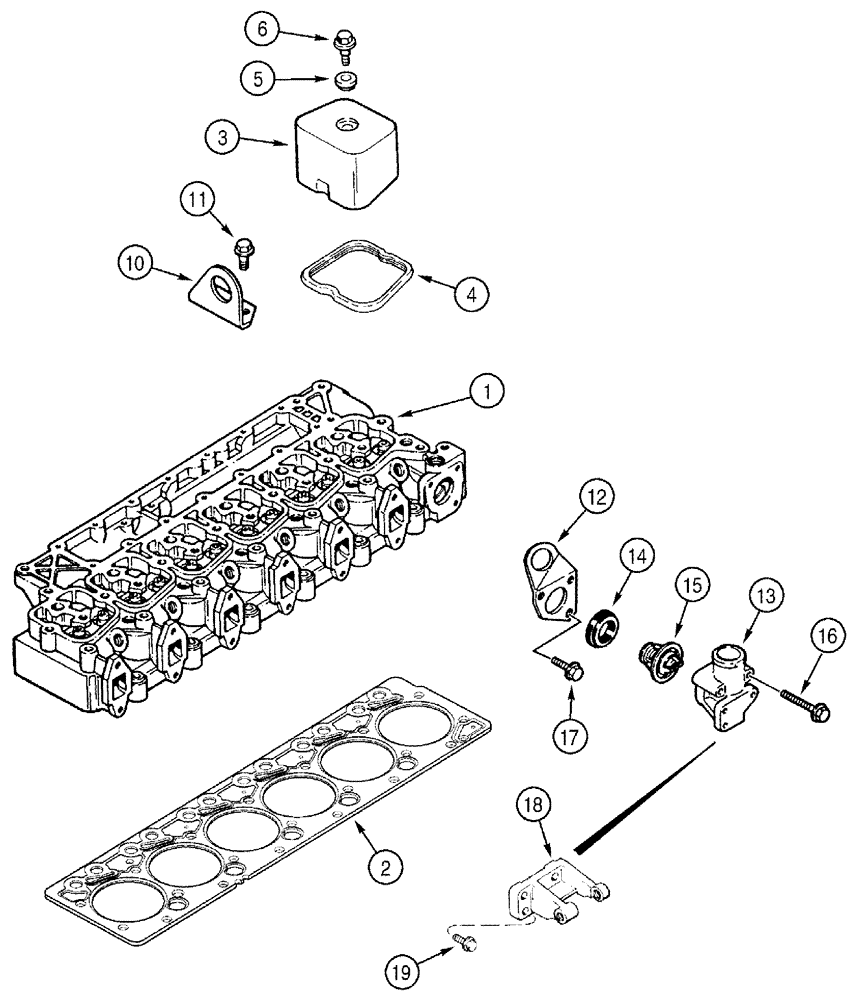

Запчасти Case IH 3185 (03-015[01]) - CYLINDER HEAD COVERS & GASKET (01) - ENGINE

1

REF

INSTRUCTION

HEAD ASSEMBLY - CYLINDER

1шт.

See Fig. 03-016 For Parts

1шт.

2

J283335

GASKET,2.32mm Thk

HEAD, STANDARD

1шт.

2

J283337

GASKET,2.24mm Thk

HEAD, 1 NOTCH, 0.25 MM THICKER

1шт.

2

J283339

GASKET

HEAD, 2 NOTCHES, 0.50 MM THICKER

1шт.

3

J928404

COVER

ROCKER ARM

6шт.

4

J930906

GASKET

SEAL - ROCKER ARM COVER

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

NOISE

6шт.

6

J907049

BOLT,Hex

HEX FLANGE, SPECIAL, 8 - 1.25 X 21.25 MM

6шт.

6a

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

Not Shown

1шт.

10

J908118

BRACKET

LIFTING, REAR

1шт.

11

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.
