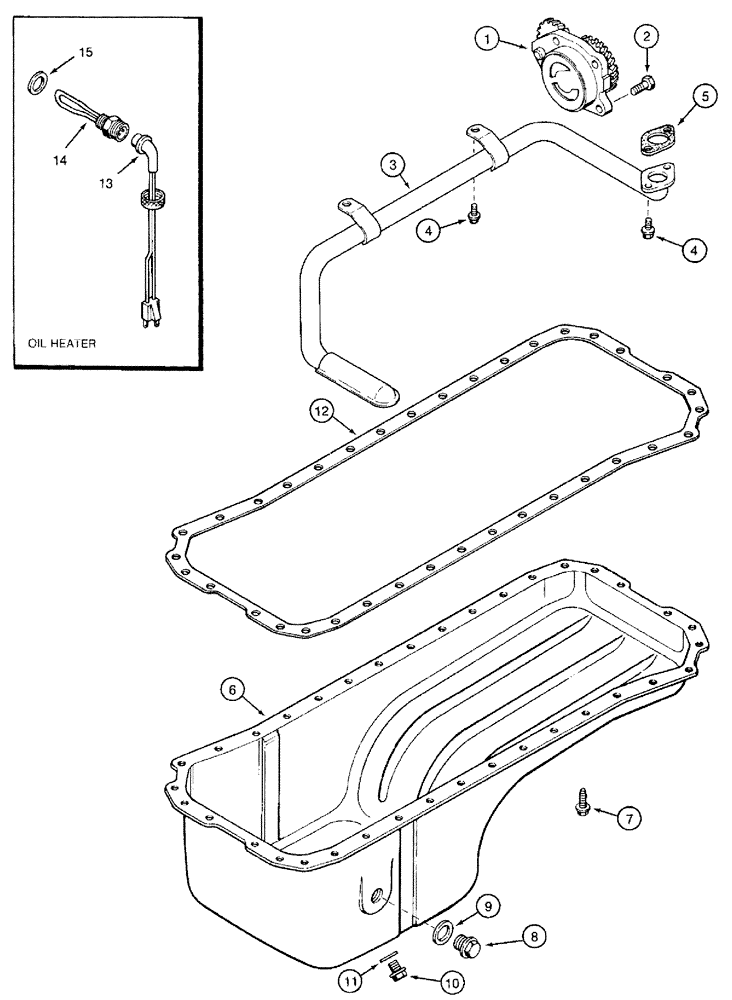

Запчасти Case IH 3185 (03-014) - OIL PUMP, PAN & HEATER (01) - ENGINE

1

J937404

PUMP, ENGINE OIL

ASSEMBLY, NEW

1шт.

1a

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1b

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

HEX, FULL THREADS, 8 - 1.25 X 30 MM

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE - OIL

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

5

J938157

GASKET,1.2mm Thk

mounting, oil suction tube

1шт.

A77979 kit - gasket, oil pan

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

36шт.

8

J924148

PLUG,M22 x 1.5

HEX MAGNETIC, SPECIAL, 22 MM - 1.5

1шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, PLUG

1шт.

A77979 kit - gasket, oil pan

1шт.

10

J924147

PLUG,M18 x 1.5

HEX MAGNETIC, SPECIAL, 18 MM - 1.5

1шт.

11

J920773

SEALING WASHER

1шт.

A77979 kit - gasket, oil pan

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - OIL PAN

1шт.

A77979 kit - gasket, oil pan

1шт.

12a

A77490

KIT

Heater, Engine Oil

1шт.

When P/N A77490 Kit Is Ordered, Ref. 15, P/N J902425 Washer must Also Be Ordered

1шт.

13

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - HEATER, 120 VOLT

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, PLUG 240 VOLT

1шт.

When P/N A77490 Kit Is Ordered, Ref. 15, P/N J902425 Washer must Also Be Ordered

1шт.

13

J905114

ELECTRIC CABLE

ENGINE BLOCK HEATER, 6 FOOT, 240 VOLT

1шт.

14

J285916

HEATER

ELEMENT, 240 VOLT

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEALING, PLUG, 240 VOLT

1шт.
