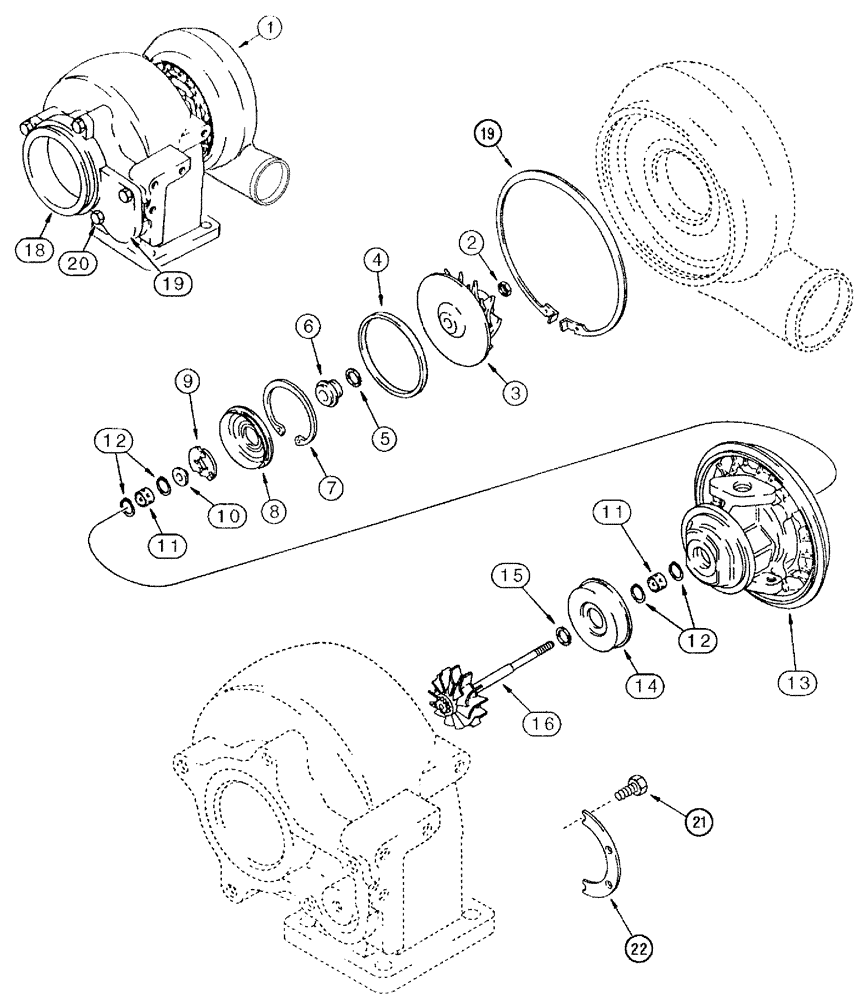

Запчасти Case IH 3185 (03-011) - TURBOCHARGER ASSEMBLY (01) - ENGINE

1b

J802697

KIT

turbocharger with gaskets

1шт.

1b

JR802697

REMAN-TURBOCHARGER

KIT, ASSEMBLY

1шт.

1b

JC536327

CORE-TURBOCHARGER

Return Number - USE THIS PART NUMBER TO RETURN TURBO-CHARGER CORE FOR CREDIT WHEN USING A REMANUFACTURED ASSEMBLY

1шт.

Also includes Refs. 1 - 11 on Fig. 03-012

1шт.

2

NSS

NOT SOLD SEPARAT

NUT-HEX, LOCK

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - TURBOCHARGER

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL-SPLIT RING

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER-OIL

1шт.

7

NSS

NOT SOLD SEPARAT

RING - RETAINING

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - OIL

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - THRUST

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - THRUST

1шт.

10a

NSS

NOT SOLD SEPARAT

BEARING - IMPELLER SHAFT

2шт.

12

NSS

NOT SOLD SEPARAT

RING - RETAINING

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - HEAT

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - SPLIT RING

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - TURBOCHARGER

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - OIL SEAL

1шт.

Not Shown

1шт.

18

J535001

GASKET,0.25mm Thk

mounting

1шт.

19

J527759

ADAPTER

connection

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J759917

SET SCREW

HEX HEAD

4шт.

22

J534309

PLATE

CLAMPING

2шт.

23

J533163

SNAP RING

RETAINING

1шт.

23a

J575169

REPAIR KIT

OVERHAUL, TURBOCHARGER

1шт.

Consists of Refs. 2, 4, 5, 7, 8, 9, 11, 12, 15, and 21

1шт.

23b

J537817

HOUSING

CENTER ASSEMBLY - TURBOCHARGER

1шт.

Consists of Refs. 2 - 17

1шт.
