Запчасти Case IH 3185 (03-010) - TURBOCHARGER SYSTEM (01) - ENGINE

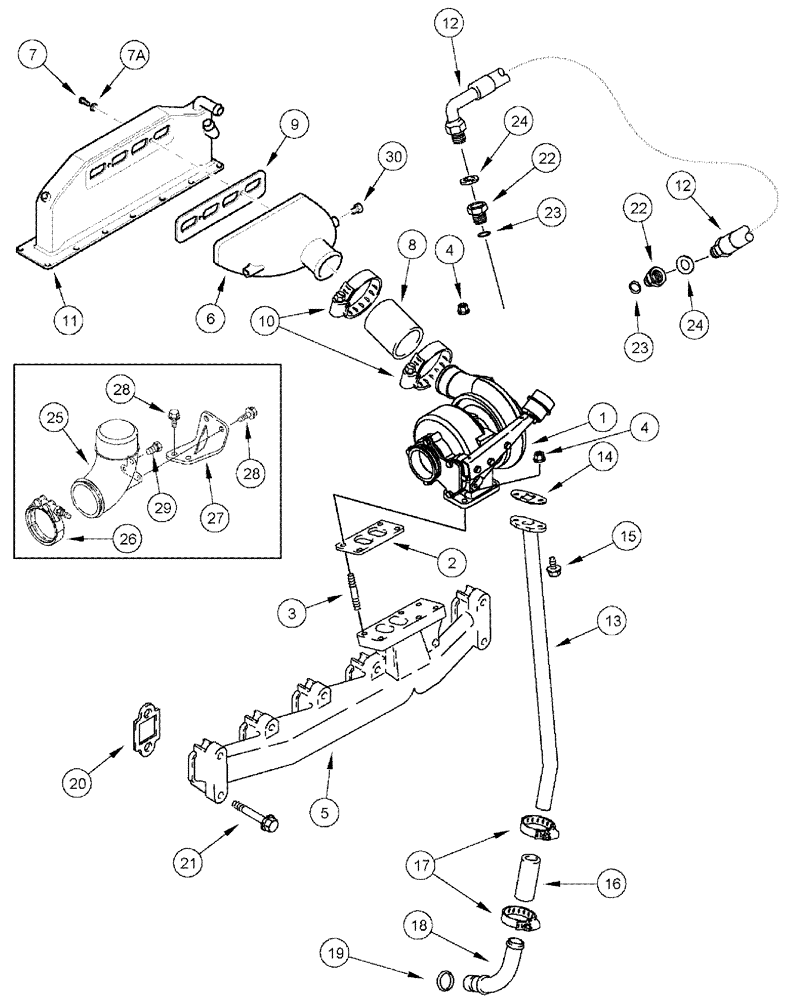

Схема запчастей Case IH 3185 - (03-010) - TURBOCHARGER SYSTEM (01) - ENGINE
7a
18
2
16
5
25
15
17
28
23
3
19
6
9
12
8
22
12
28
13
10
4
14
4
24
24
29
11
21
22
23
30
27
1
20
26
7

Артикул

Название

Примечание

Количество

1

J802697

KIT

turbocharger with gaskets

1шт.

See Fig. 03-011 for Parts

1шт.

1

JR802697

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

1

JC536327

CORE-TURBOCHARGER

Return Number

1шт.

2

J919369

GASKET,0.5mm Thk

TURBOCHARGER TO MANIFOLD

1шт.

3

J818823

STUD

TURBOCHARGER MOUNTING

4шт.

4

J818824

FLANGE NUT

HEX FLANGE, SPECIAL, 10 MM - 1.5

4шт.

5

J931747

MANIFOLD

EXHAUST

1шт.

6

J928502

CONNECTOR, ELEC

CONNECTOR AIR CROSSOVER

1шт.

7

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

2шт.

7a

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

8

J916437

HOSE

Air Crossover

1шт.

9

J930426

GASKET

AIR CROSSOVER CONNECTION

1шт.

10

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

11

J928503

AFTERCOOLER

AFTER - AIR INTAKE

1шт.

See Fig. 03-009 for Mounting and Supply Tubes

1шт.

12

J918562

HOSE

538 MM (21-3/16 INCH) LONG, OIL SUPPLY

1шт.

13

J934093

TUBE

TURBOCHARGER OIL DRAIN, UPPER

1шт.

14

J937706

GASKET,0.79mm Thk

TURBO OIL DRAIN TUBE

1шт.

15

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

16

J286499

HOSE

76 MM (3 INCH) LONG, OIL DRAIN

1шт.

17

87016721

HOSE CLAMP,17.5mm - 31.7mm

2шт.

18

J931973

TUBE,0.875" OD

TURBOCHARGER OIL DRAIN, AT BLOCK

1шт.

19

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

21

J901448

FLANGE BOLT,Hex, M10 x 65mm

12шт.

22

J919687

HYD CONNECTOR

ADAPTER - FEMALE HEX, SPECIAL

2шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

24

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

25

J910991

ELBOW

TURBOCHARGER EXHAUST

1шт.

26

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

27

J930717

BRACKET

SUPPORT

1шт.

28

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

Support bracket to exhaust manifold, and support bracket to turbocharger exhaust elbow

1шт.

29

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

30

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

Выбрано товаров: 36
