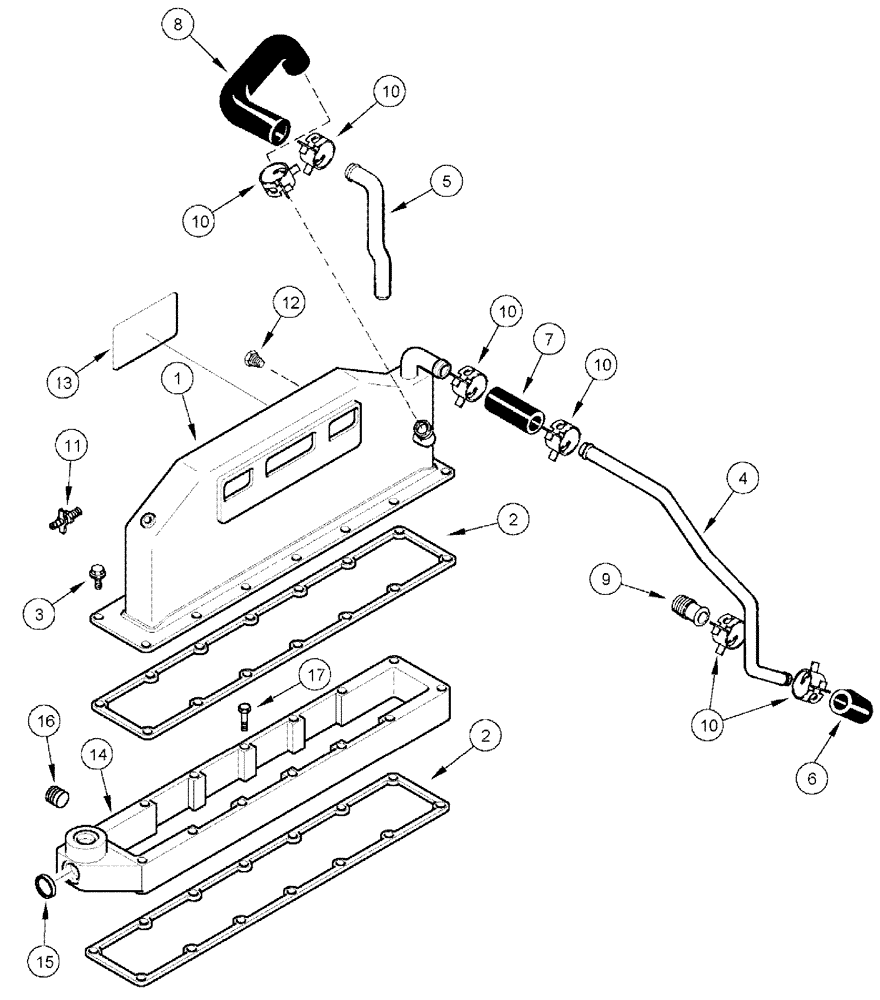

Запчасти Case IH 3185 (03-009) - AFTERCOOLER (01) - ENGINE

1

J928503

AFTERCOOLER

AFTER - AIR INTAKE

1шт.

2

J938152

MANIFOLD GASKET

MOUNTING

2шт.

3

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

BOLT - HEX FLANGE, SPECIAL, 8 X 50 MM

10шт.

4

84142366

TUBE,15.75 mm ID x 19.05 mm OD

Aftercooler

1шт.

5

J926446

TUBE,19.05 mm OD x 154.6 mm L

AFTERCOOLER SUPPLY

1шт.

6

J918607

HOSE,43.20 mm

Elbow

1шт.

7

J918611

HOSE,18.50 mm ID x 63.00 mm

1шт.

Tube to aftercooler

1шт.

8

J928492

TUBE

HOSE - ELBOW, RETURN

1шт.

9

84149989

COUPLING

Plain Hose

1шт.

10

J937613

HOSE CLAMP

SPRING TYPE

6шт.

Aftercooler hoses to tubes

1шт.

11

J909394

COCK, DRAIN

VALVE, AIR BLEED

1шт.

12

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

Installed in aftercooler drain

1шт.

13

J910778

DECAL

CAUTION, OPEN DURING FILL

1шт.

Not Shown

1шт.

14

J928464

SPACER

AFTERCOOLER

1шт.

15

J900956

PLUG

EXPANSION, 18 MM OD

1шт.

16

86625118

DRAIN PLUG,1/2" - 14 NPT

1шт.

17

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

1шт.
