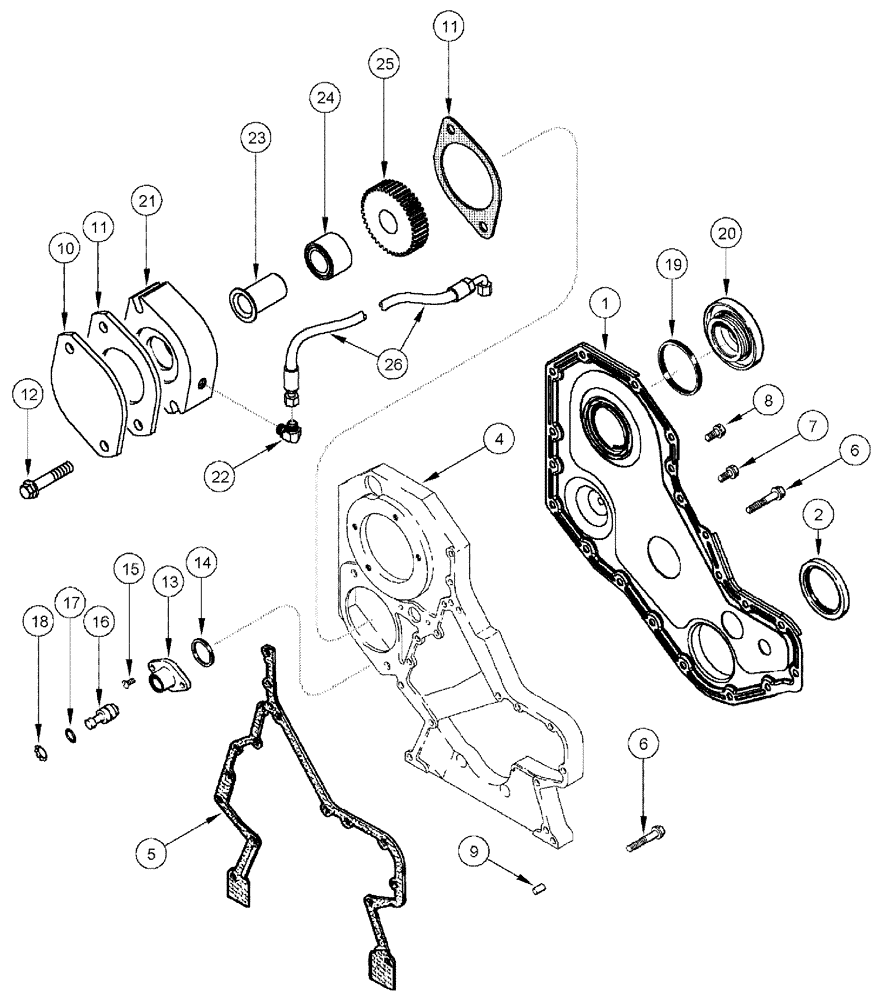

Запчасти Case IH 3185 (03-008) - FRONT GEAR COVER (01) - ENGINE

1

J935583

COVER

GEAR, FRONT

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - OIL, FRONT (ORDER SEAL KIT A77889 OR A77890 ON FIG. 03-019)

1шт.

4

J936256

HOUSING

TIMING GEAR

1шт.

5

J938156

GASKET,0.79mm Thk

GEAR HOUSING

1шт.

6

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

11шт.

Front gear cover to timing-gear housing to block, and housing to block

1шт.

7

J924962

FLANGE BOLT

HEX FLANGE, SPECIAL, 8 - 1.25 X 16 MM, FRONT GEAR COVER TO TIMING- GEAR HOUSING, AND HOUSING TO BLOCK

11шт.

8

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

10

J914868

COVER

plate, access, flat

1шт.

11

J938655

GASKET,1.27mm Thk

COVER

2шт.

12

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

2шт.

13

J919683

HOUSING

TIMING PIN

1шт.

14

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Timing Pin Housing

1шт.

15

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

16

J903924

PIN,18.87mm OD x 55mm L

TIMING

1шт.

17

J913994

O-RING

SEALING

1шт.

18

100-2587

SNAP RING,0.875", Int, #87

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

FRONT ACCESS COVER

1шт.

20

J903463

PLUG,M63 x 5

front access

1шт.

20a

J939961

DRIVE ASSY.

HYDRAULIC PUMP

1шт.

21

J939957

ADAPTER

HYDRAULIC PUMP

1шт.

22

J939694

ELBOW

PLAIN UNION, M10 X 7/16 INCH

1шт.

23

J935645

SHAFT

ACCESSORY DRIVE

1шт.

24

J935644

BEARING, ROLLER

1шт.

25

84153358

DRIVING GEAR

ACCESSORY

1шт.

26

J925100

HOSE,125.00 mm

1шт.

26a

J823494

SEALANT

LIQUID BOND (USED BETWEEN FRT GEAR COVER AND TIMING SEAL HSG)

1шт.
