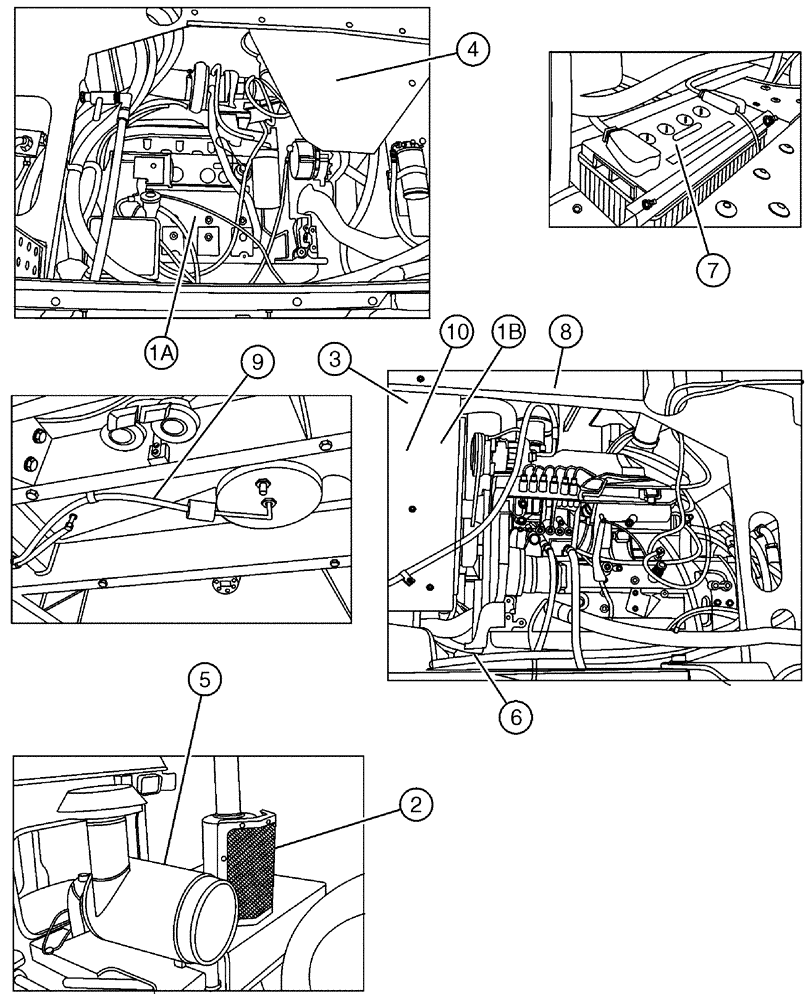

Запчасти Case IH 3185 (03-002) - ENGINE GROUP (01) - ENGINE

1

NS

NOT SERVICED

Engine Radiator Package 785A

1шт.

1a

NS

NOT SERVICED

Engine Assembly 785A

1шт.

See Fig. 03-001

1шт.

1b

BN315812

RADIATOR

GTI #2804E Assembly

1шт.

See Fig. 03-042

1шт.

1c

BN315811

Radiator Package

1шт.

See Fig. 03-042

1шт.

2

BN310683

DEFLECTOR

1шт.

See Fig. 03-040

1шт.

3

BN310739

SEAL

PKG.-SHIELD ENG-LOWER HOOD

1шт.

See Fig. 03-037

1шт.

4

BN310740

SHIELD

package, alternator

1шт.

See Fig. 03-037

1шт.

5

BN310742

AIR CLEANER

1шт.

See Fig. 03-032

1шт.

6

BN311143

HDW ENGINE MNT

1шт.

See Fig. 03-033

1шт.

7

BN311569

BATTERY ASSY

1шт.

See Fig. 03-039

1шт.

8

BN311707

ENGINE HOOD

1шт.

See Fig. 03-037

1шт.

9

BN314936

HOSE, BULK

HOSE, METERS FUEL DELIVERY SYSTEM

1шт.

See Fig. 03-041

1шт.

10

BN68154

MT & SCREEN OIL COOL

1шт.

See Fig. 03-037

1шт.
