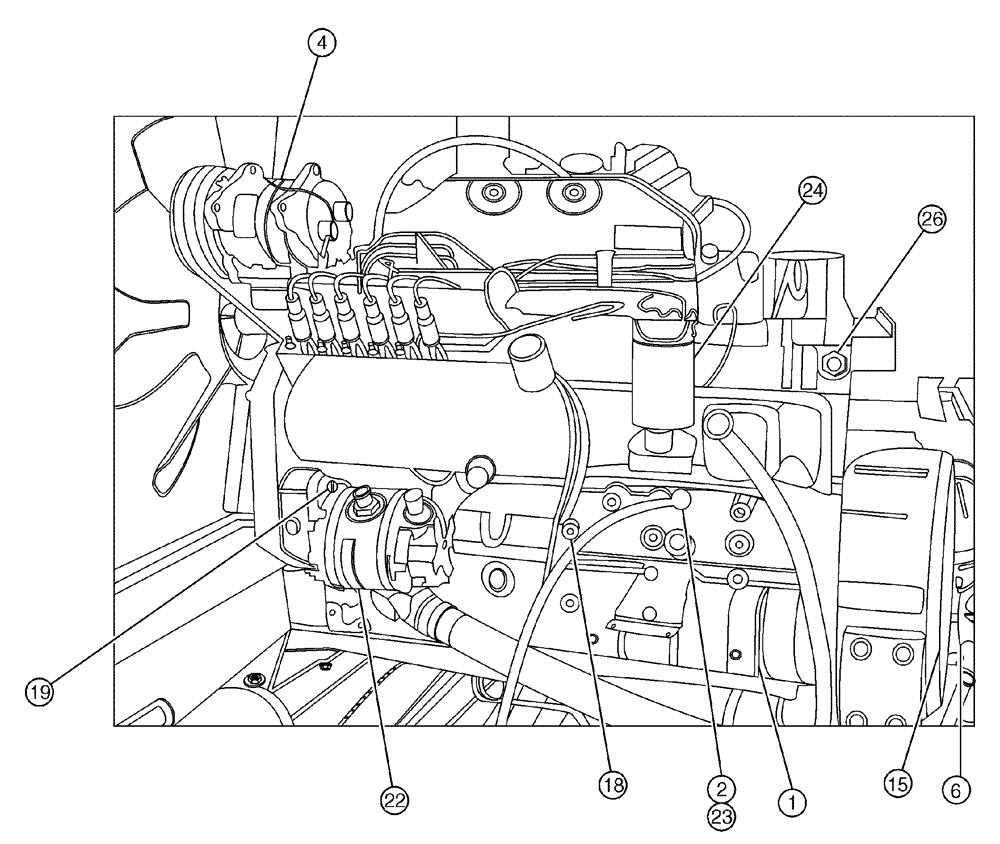

Запчасти Case IH 3185 (03-001[01]) - ENGINE ASSEMBLY (01) - ENGINE

1

BN310488

THROTTLE

CBL

1шт.

See Fig. 03-035

1шт.

2

BN310569

ELBOW

HOSE BARB 1/2MPT X 3/8 X 90 DEG

1шт.

3

BN310736

5.9L-185HP ASSY

1шт.

See Fig. 03-003

1шт.

335865A1R

REMAN-BASIC ENGINE

3185 Patriot (8/04 - 5/09)

1шт.

335865A1C

CORE-BASIC ENGINE

Return Number

1шт.

4

BN310830

AIR COMPRESSOR

A/C

1шт.

See Fig. 03-030

1шт.

5

BN311178

1шт.

See Fig. 03-036

1шт.

5

BN311178

1шт.

Not Shown

1шт.

6

NS

NOT SERVICED

Hydrostat With Mounting Hardware

1шт.

6a

NS

NOT SERVICED

HDW. HYDROSTAT MTG. GROUP

1шт.

Parts of Hydrostat W/mounting Hardware, P/N 87268359

1шт.

See Fig. 06-002

1шт.

6b

BN311139

FIP KIT

HDW. HYDSTAT SUPPORT MTG.

1шт.

Parts of Hydrostat W/mounting Hardware, P/N 87268359

1шт.

See Fig. 03-034

1шт.

7

BN311373

ALTERNATOR

1шт.

See Fig. 03-031

1шт.

10

BN316131

VENT-HEAD

1шт.

10a

BN72167

BUSHING

1/2 X 1/4 PTR-S

1шт.

Parts of Package, Vent Head, P/N BN316131

1шт.

10b

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

Parts of Package, Vent Head, P/N BN316131

1шт.

11

BN316111

W/HDWE

1шт.

11a

BN300499

WASHER,M10, 10.9

4шт.

Parts of Spacer Fan, W/hardware, P/N BN316111

1шт.

11b

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

Parts of Spacer Fan, W/hardware, P/N BN316111

1шт.

11c

87031374

SPACER

Fan, 70 mm

1шт.

Parts of Spacer Fan, W/hardware, P/N BN316111

1шт.

12

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

12a

116928A2

STARTING MOTOR

12V, 4.0 KW, Denso

1шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

116928A2R

REMAN-STARTER

1шт.

116928A2C

CORE-STARTER

Return Number

1шт.

12b

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

Battery Stud

1шт.

12c

258820A1

SCREW

M5 x 8

1шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

12d

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

12e

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

Mounting

1шт.

12f

86509828

LOCK WASHER,M5

1шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

Solenoid

1шт.

12g

892-11010

LOCK WASHER,M10

1шт.

Parts of Starter Package, W/ Hardware, P/N BN311554

1шт.

Battery Stud

1шт.

13

BN315810

FAN

26" dia.

1шт.

14

BN311566

LINKAGE

1шт.

See Fig. 03-044

1шт.

15

BN311596

COUPLR ASSEMBLY

1шт.

See Fig. 03-004

1шт.

16

BN310903

MOUNTING PLATE

MNT. W/SHIELD

1шт.

See Fig. 03-038

1шт.

17

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

18

BN319998

SENDER UNIT

oil pressure

1шт.

18a

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

Service Parts for Ref. 18

1шт.

19

BN310636

STUD

2шт.

19a

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

Associated Part of Stud, M12 X 1.75 X 90, P/N BN310636

1шт.

20

87271985

HYDRAULIC VALVE

Shift Block With Deutsch Connector

1шт.

See Fig. 06-020

1шт.

22

BN69114

W/ADAPTR

1шт.

22a

BN67510

GASKET

SAE B PAD

1шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

22b

NSS

NOT SOLD SEPARAT

PUMP-HYD-TANDEM-CW-ROT

1шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

See Fig. 06-002

1шт.

22c

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

22d

BN444003

FITTING

8MJ-12MB

2шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

23

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

2шт.

25

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

26

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

26a

BN315812

RADIATOR

GTI #2804E Assembly

1шт.

See Fig. 03-042 (Refs. 1 - 5)

1шт.

Not Shown

1шт.

26b

BN315811

DRAIN HOSE

1шт.

See Fig. 03-042 (Ref. 6 - 10)

1шт.

Not Shown

1шт.

26c

87270000

WIRE HARNESS

ENGINE

1шт.

Not Shown

1шт.

26d

BN72167

BUSHING

RED.

1шт.

Not Shown

1шт.

26e

87272737

BREATHER EXTENSION, Start Serial: 20274

1шт.

Not Shown

1шт.

26f

293685A1

HOSE,15.75 mm ID x 650.00 mm

DRAIN

1шт.

26g

87272738

HOSE,0.50" ID

Mender

1шт.
