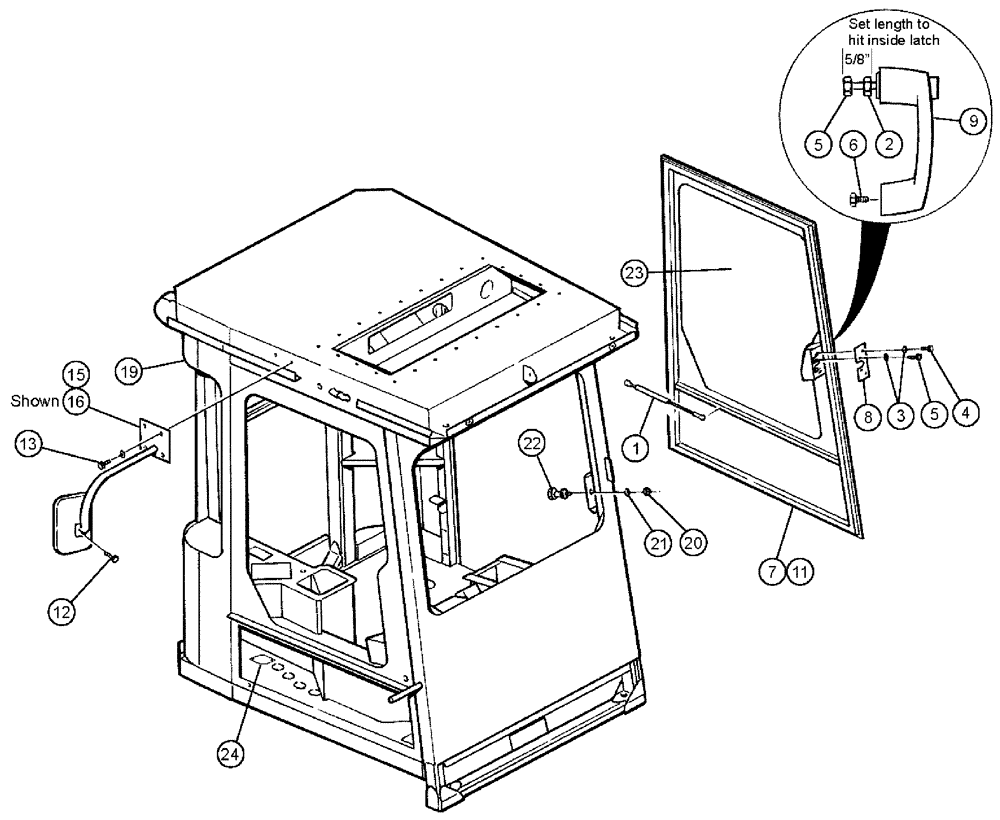

Запчасти Case IH 3185 (02-005) - DOOR, MIRRORS Cab Exterior
№
Артикул
Название
Примечание
Количество
1
BN67932
DOOR ASSY.
ENTRY LH
1шт.
Includes Refs. 1 - 11
1шт.
1
BN29434
GAS STRUT
Cylinder Kit - Charged - Door (Complete)
1шт.
1a
BN29400A
CYLINDER
Gas Charged
1шт.
Service Parts for Ref. 1
1шт.
1b
BN29553A
BALL JOINT
Stud, 13 mm Dia 5/16"-18
2шт.
Service Parts for Ref. 1
1шт.
1c
BN24120
CLIP, SPRING
Gas Cylinder
2шт.
Service Parts for Ref. 1
1шт.
2
280129
NUT,1/4"-20
1шт.
3
BN50138
WASHER,1/4", SS
4шт.
4
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
5
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
3шт.
7
BN66026
DOOR
1шт.
8
BN66103
LATCH
door, two rotor
1шт.
8a
BN67951
CAP
Vinyl, .060 x .437 x 1.5
1шт.
Associated Part of Latch (Door) Two Rotor (Inside), P/N BN67951
1шт.
9
BN66106
HANDLE
(DOOR) OUTSIDE
1шт.
9a
BN303475
DOOR LOCK KEY
SET OF 2
1шт.
Associated Part of Handle (Door) Outside, P/N BN66106
1шт.
11
84146228
RUBBER SEAL,4877mm L
Door
1шт.
12
BN50212
BOLT,1/4"-20 x 3/4", Stainless Steel
2шт.
13
BN50250
BOLT,3/8"-16 x 3/4", Stainless Steel
8шт.
13a
185773A1
MIRROR
2шт.
13b
1530998C2
SUPPORT
holder
2шт.
13c
160-101
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd
8шт.
15
BN314798
MOUNTING PARTS
MIRROR, LH
1шт.
16
BN314748
MOUNTING PARTS
MIRROR, RH
1шт.
Shown
1шт.
16a
855-8030
BOLT,Hvy Hex, M8 x 30mm, Cl 10.9
6шт.
Associated Part of Mirror Mount Weldment, R.H., P/N BN314748
1шт.
19
BN65970
CAB
1шт.
20
280980
NUT,7/16"-14, GC
1шт.
21
81541
WASHER,0.5" ID x 1.25" OD x 0.08" Thk
2шт.
22
BN66109
CATCH
STRIKER (DOOR)
1шт.
22a
BN300873
BULB
Halogen, H3 12 volt
6шт.
Service Parts for Ref. 22
1шт.
24
BN69742
ELEC. TERMINAL PIN,Male
Bulkhead , .22 Pin Male
1шт.
24a
BN69743
LOCK
BULKHEAD CONNECTOR
2шт.
Associated Part of Bulkhead, Male Conn. 22 Pin, P/N BN69742
1шт.
24b
BN16108
PLUG
Weatherpak Connector
22шт.
Associated Part of Bulkhead, Male Conn. 22 Pin, P/N BN69742
1шт.
Выбрано товаров: 43
