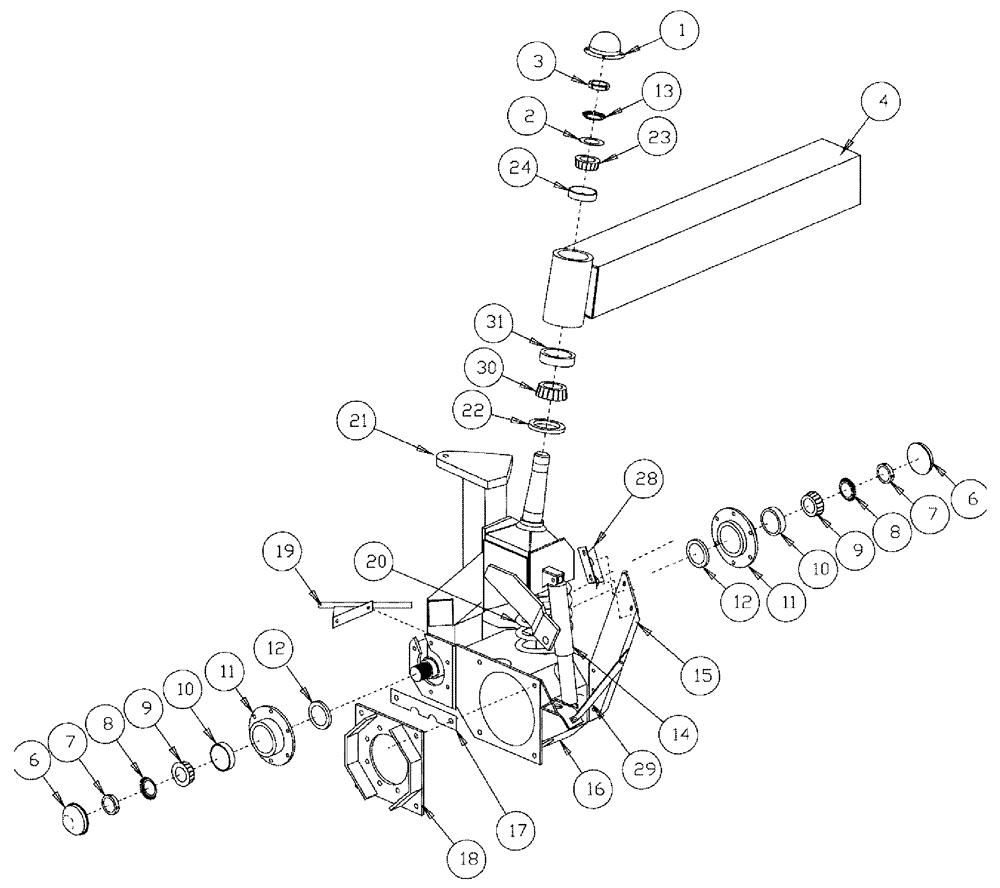

Запчасти Case IH 3185 (04-013) - STRUT ASSEMBLY - FRONT Suspension & Frame

1

BN89874

DUST CAP

2шт.

2

BN66209

WASHER,65.79mm ID x 95.25mm OD x 9.65mm Thk

spacer, front spindle

2шт.

3

BN58124

BEARING LOCK NUT

2шт.

4

BN303548

AXLE

LH, low profile

1шт.

4a

BN303470

AXLE

RH, low profile

1шт.

Indicates Same Axle Part P/N BN303548, but Opposite Side

1шт.

6

BN80442

DUST CAP

W/DRILL & TAP

4шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

11a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part of Hub, P/N BN29071

1шт.

12

BN31074

SEAL

4шт.

13

BN58125

LOCK WASHER

lock, series wh

2шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN65573

BRACKET

SUPPORT L.H.

1шт.

Shown

1шт.

15a

BN65574

BRACKET

SUPPORT R.H.

1шт.

Indicates Same Support Part, but Opposite Side

1шт.

16

BN66423

BRACKET

HOUSING L.H.

1шт.

Shown

1шт.

16a

BN66422

FRAME

HOUSING R.H.

1шт.

Indicates Same Support Part, but Opposite Side

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66291

BRACKET

PLATE

2шт.

18a

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

Associated Part of Plate, P/N BN29071

1шт.

18b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part of Plate, P/N BN29071

1шт.

18c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part of Plate, P/N BN29071

1шт.

87342967

BOLT

5/8"-18 x 2.5", Holds Wheel Hub to Bracket Ref 18

16шт.

BN50775

LOCK NUT

5/8"-18, Holds Wheel Hub to Bracket Ref 18

16шт.

19

BN29690

DEFLECTOR

2шт.

20

BN322212

COIL SPRING

CTRLESS GRND

2шт.

20a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part of Spring Coil, Centerless Ground, P/N BN322212

1шт.

21

BN323756

STRUT

Front, LH

1шт.

21a

BN323755

FRAME

STRUT R.H. (High Clearance: Measures 37 3/4" From Bottom of Strut to Flat Top Plate)

1шт.

Indicates Same Strut Part, but Opposite Side

1шт.

21b

BN323922

STRUT

LH, Low Profile: Measures 27 1/2" From Bottom of Strut to Flat Top Plate

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

21c

BN323921

STRUT

RH, Low Profile

1шт.

Indicates Same Strut Part, but Opposite Side

1шт.

22

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

2шт.

28

BN63919

BRACKET

Hyd hose

2шт.

29

BN65577

BRACKET

LH

1шт.

Shown

1шт.

29a

BN65576

SUPPORT

1шт.

Indicates Same Brace Part, but Opposite Side

1шт.

30

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

2шт.

31

BN89875

RACE

2шт.

31a

87570121

FRT STRUT

1шт.

Not Shown

1шт.
