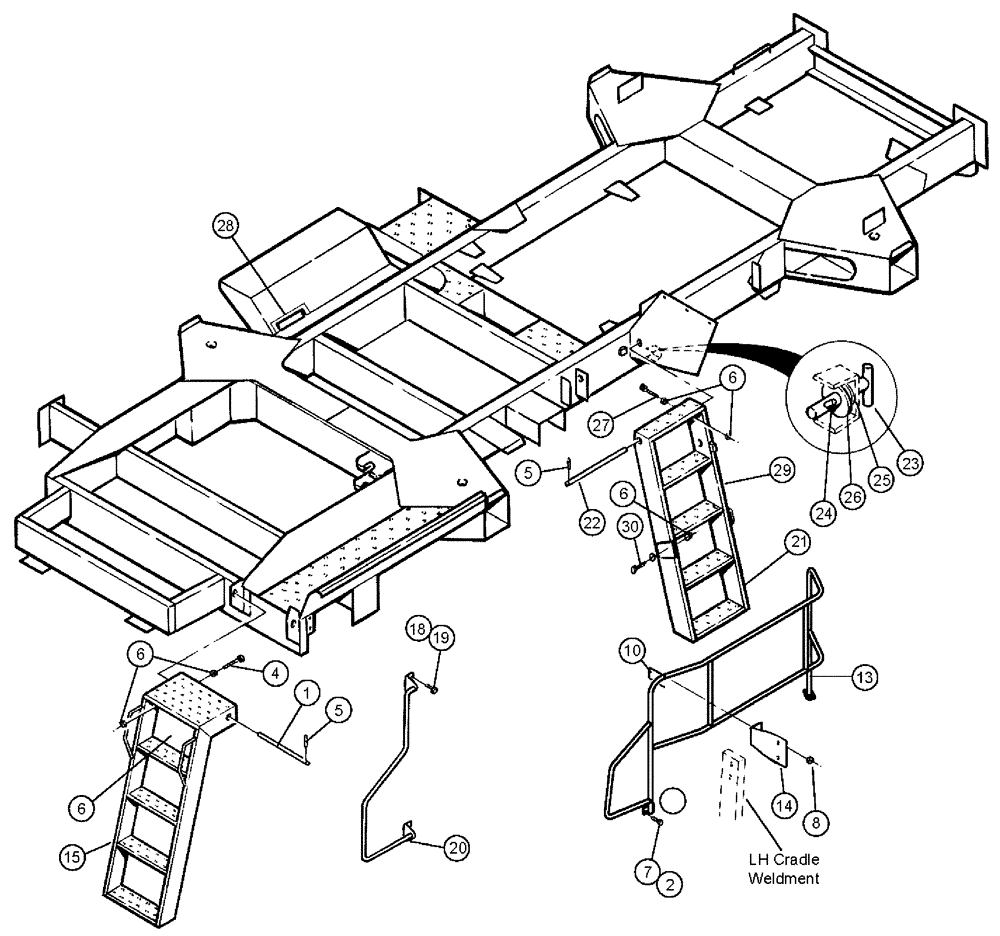

Запчасти Case IH 3185 (04-011) - LADDERS - LH Suspension & Frame

1

BN25138

SHAFT

1" x 17.25"

1шт.

2

280736

NUT,5/16"-18, GC

4шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

5

BN50605

PIN, ROLL

7/32 X 1 1/2

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

13шт.

7

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

8

280129

NUT,1/4"-20

2шт.

10

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

1шт.

13

87270372

HANDRAIL

1шт.

14

87270387

BRACKET

HANDRAIL

1шт.

15

BN311242

LADDER

(High Clearance)

1шт.

15a

BN67829

LADDER

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

18

88902

NUT,3/8"-16

4шт.

19

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

20

BN67722

HANDLE

GRAB (FRONT LADDER)

1шт.

21

BN312542

LADDER

BI-FOLD (3 STEP) (HIGH CLEARANCE)

1шт.

21a

BN63583

LADDER

bi fold, 2 step

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

22

BN24557

PIN

1" CFRD x 18.75

1шт.

23

BN25257

PIN

Side Ladder

1шт.

24

BN31444

PIN, ROLL

1/4 X 1 1/2

1шт.

25

BN31937

SPRING

COMPR .905 X .765 2

1шт.

26

BN50157

WASHER

3/4 FLAT PLATED

1шт.

27

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

28

BN24151

ON, 12.5"

1шт.

29

BN63582

LADDER

Bi-Fold Top

1шт.

30

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

30a

87271143

SHOCK ABSORBER

Door Stop

1шт.

Not Shown

1шт.
