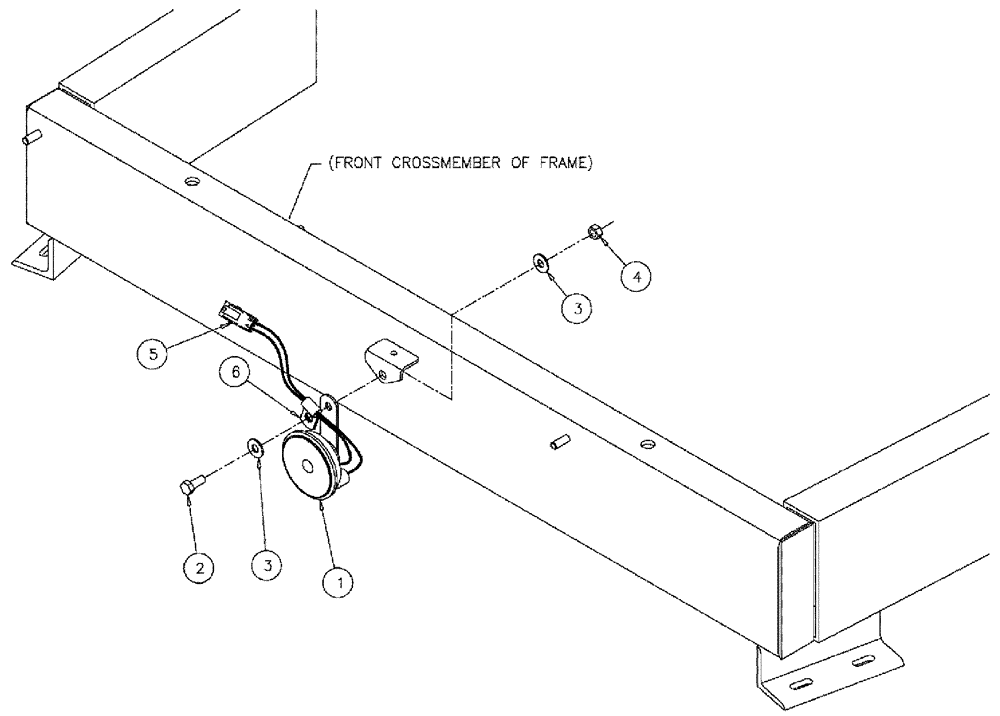

Запчасти Case IH 3185 (04-009) - HORN ASSEMBLY Suspension & Frame

1

87714969

HORN

W/BREATHER

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

86528579

NUT,M8 x 1.25

1шт.

5

87270348

WIRE HARNESS

HORN JUMPER

1шт.

6

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
