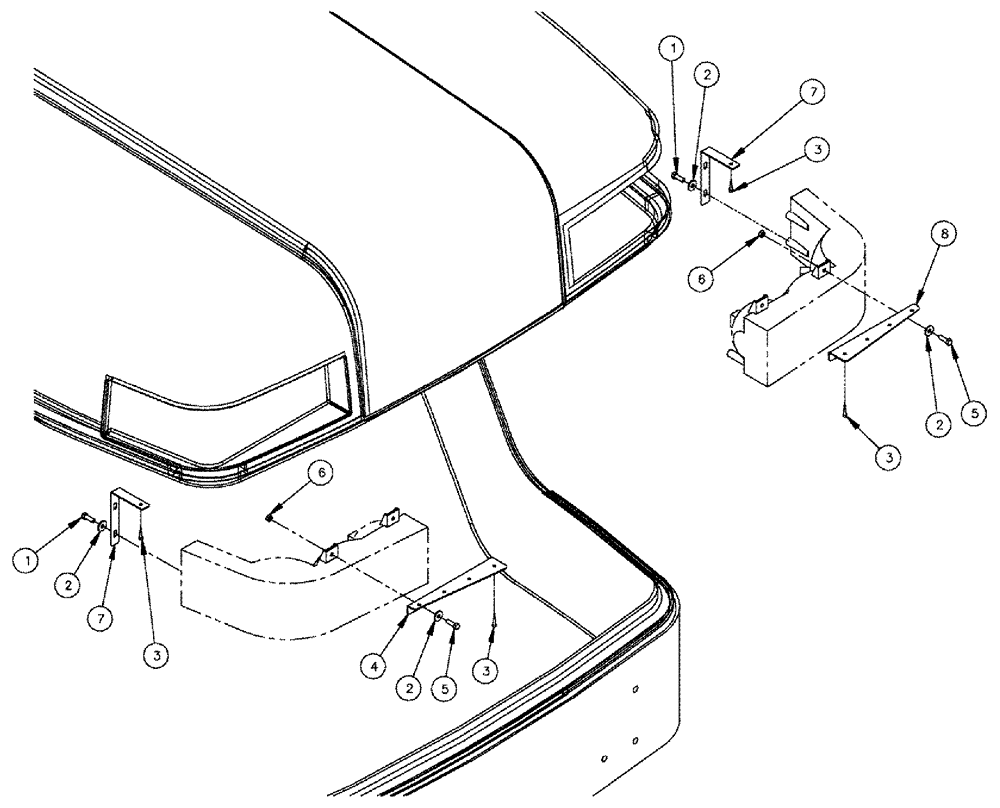

Запчасти Case IH 3185 (04-008) - HEADLIGHT MOUNT GROUP Suspension & Frame

1

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

8шт.

3

BN303821

RIVET

.18 x .57 Steel

10шт.

4

BN303233

BRACKET

Headlamp, RH

1шт.

5

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

6

353308

NUT,M6 x 1.0, Cl 8

4шт.

7

BN303231

BRACKET

Headlamp Back

2шт.

8

BN303232

MOUNTING PARTS

HEADLAMP, L.H.

1шт.
