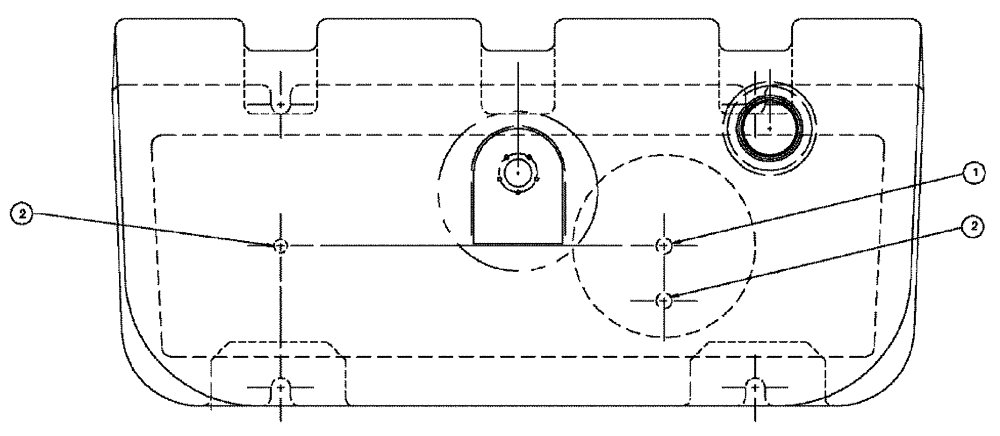

Запчасти Case IH 3185 (04-007) - FUEL TANK Suspension & Frame

1

BN306081

REPAIR KIT

LONG TANK FITTING

1шт.

1a

BN68499

NUT

LH thread, fuel fitting

1шт.

Parts of Assy, Long Tank Fitting, P/N BN306081

1шт.

1b

BN300604

FITTING

fuel, long brass

1шт.

Parts of Assy, Long Tank Fitting, P/N BN306081

1шт.

1c

BN68501

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

fuel fitting

1шт.

Parts of Assy, Long Tank Fitting, P/N BN306081

1шт.

2

BN306082

FITTING

ASSY, SHORT TANK

1шт.

2a

BN68499

NUT

LH thread, fuel fitting

1шт.

Parts of Assy, Short Tank Fitting, P/N BN306082

1шт.

2b

BN68500

FITTING

fuel, short brass

1шт.

Parts of Assy, Short Tank Fitting, P/N BN306082

1шт.

2c

BN68501

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

fuel fitting

1шт.

Parts of Assy, Short Tank Fitting, P/N BN306082

1шт.

3

BN68502

CAP

VENTED "DIESEL"

1шт.
