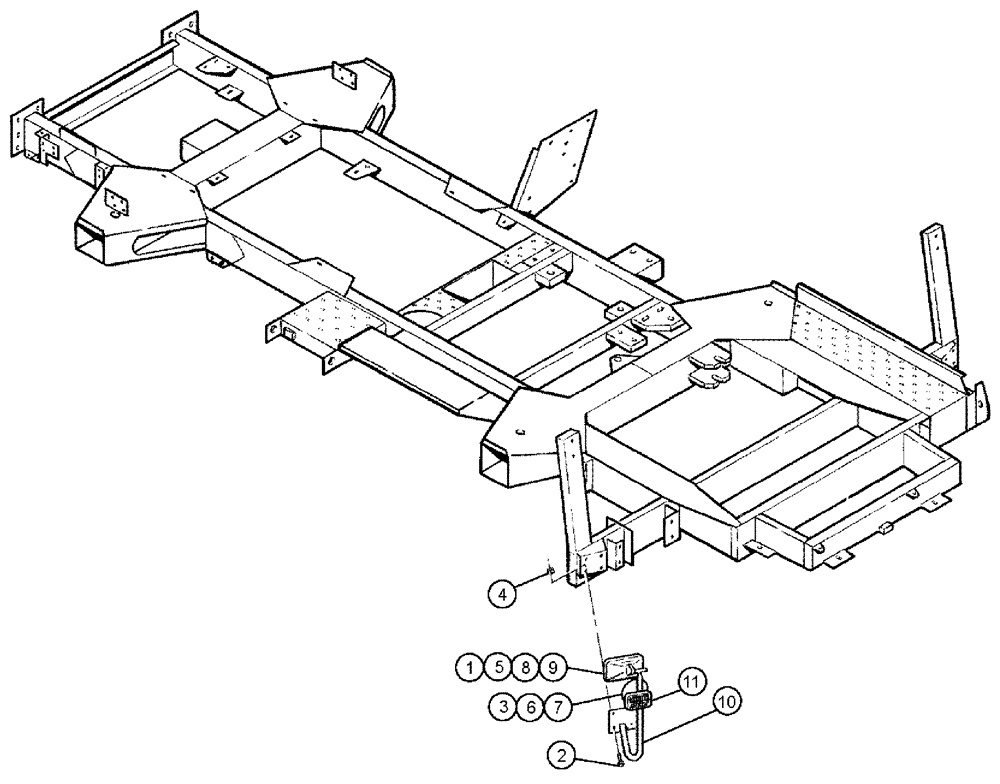

Запчасти Case IH 3185 (04-003) - MIRRORS Suspension & Frame

1

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

2шт.

2

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

3

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

4

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

5

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

1шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

7

BN63850

MIRROR

8" CONVEX BLACK

1шт.

8

BN63851

MIRROR

7.5 X 10.5 BLACK

1шт.

9

BN306477

CLAMP

Assembly, Mirror

1шт.

10

BN68252

MIRROR

ARM-WELDMENT

1шт.

11

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

11a

529068

BULB,#1156, 12V, 21W

2шт.

Service Parts for Ref. 11

1шт.

11b

BN300878

LENS

amber

2шт.

Service Parts for Ref. 11

1шт.

11c

BN300881

CAP

Lens, Black

2шт.

Service Parts for Ref. 11

1шт.
