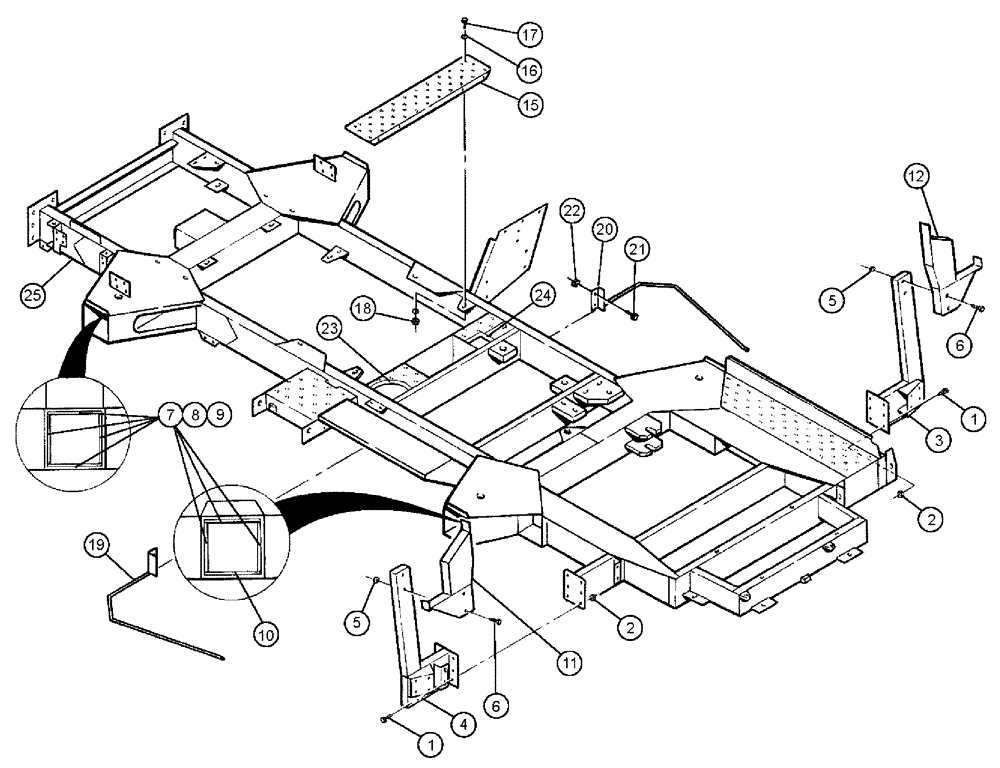

Запчасти Case IH 3185 (04-001) - FRAME ASSEMBLY Suspension & Frame

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

2

86992215

LOCK NUT,1/2"-13, GC

6шт.

3

BN66275

SUPPORT

L.H. CRADLE

1шт.

4

BN66392

SUPPORT

R.H. CRADLE

1шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

7

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

8

BN50014

BOLT

5/16"-18 x .75, EH

16шт.

9

BN25527

LINER

nylatron .187 x 7 x 40, Years: -01-OCT-08

14шт.

See Fig. 04-002

1шт.

10

BN303473

LINER

Nylatron w/notch, Years: -01-OCT-08

2шт.

See Fig. 04-002

1шт.

11

87271033

CRADLE

RH - 75' Boom

1шт.

11a

BN66528

SUPPORT

R.H. - 90' BOOM

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

Shown

1шт.

12

87271032

CRADLE

LH 75' Boom

1шт.

12a

BN66596

SUPPORT

L.H. 90' BOOM

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

Shown

1шт.

15

BN25394

PLATFORM

Deck 14GA., HRS, 11.5 x 44.0

1шт.

Spherical tank

1шт.

Shown

1шт.

15a

BN24158

LOAD DECK

14 ga. HRS, 13" x 44"

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

Eliptical tank with top flange

1шт.

16

BN50142

WASHER,5/16", Stainless Steel

12шт.

17

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

18

BN68210

5/16-18, CTR, SS

6шт.

19

BN25822

GUIDE

RH hose roller

1шт.

Used on LH for standard height

1шт.

20

BN25823

GUIDE

LH hose roller

1шт.

Used on RH for standard height

1шт.

21

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

86992215

LOCK NUT,1/2"-13, GC

4шт.

23

BN303902

SOFT TRIM

9 3/4"

2шт.

24

BN303903

SOFT TRIM

6 3/4"

1шт.

25

BN325456

FRAME

1шт.
