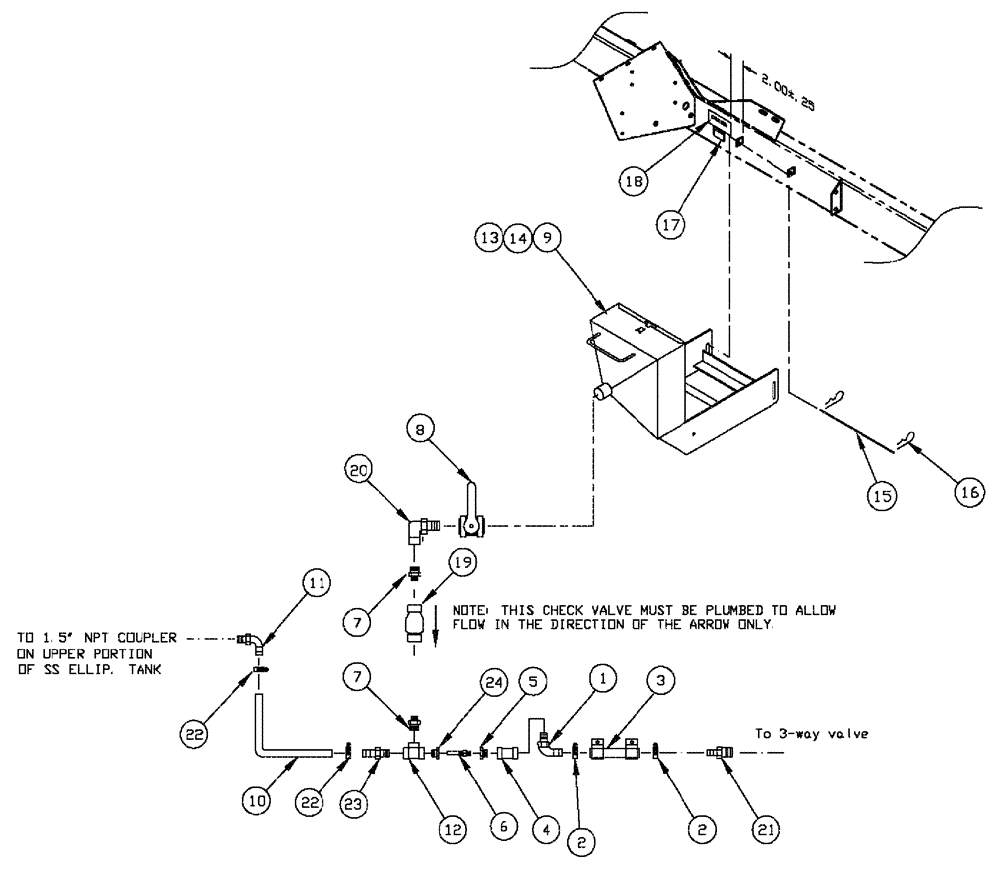

Запчасти Case IH 3185 (11-004) - CHEMICAL INDUCTOR, ELIPTICAL Options

1

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

2

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300

2шт.

3

BN66856

HOSE

1" EPDM x 25.00"

1шт.

4

BN66968

COUPLING

1" Poly

1шт.

5

BN53665

BUSHING

1" x .75 Poly

1шт.

6

BN301610

VENTURI

Rework

1шт.

7

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

1шт.

8

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

9

BN24269

TANK

Chemical Inductor

1шт.

10

BN301617

1.5" EPDM X 100"

1шт.

11

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

12

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

14

86992215

LOCK NUT,1/2"-13, GC

4шт.

15

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

16

BN71006

COTTER PIN

1/8", #11

2шт.

17

BN63998

DECAL

CAUTION, CHEMICALS

1шт.

18

BN23877

CAUTION DECAL

Chemical

1шт.

19

BN24567

CHECK VALVE

1 1/4" NPT

2шт.

20

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

2шт.

21

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

STR, 1.5MP 1.0HB, PP

2шт.

22

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

1шт.

23

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

24

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.
