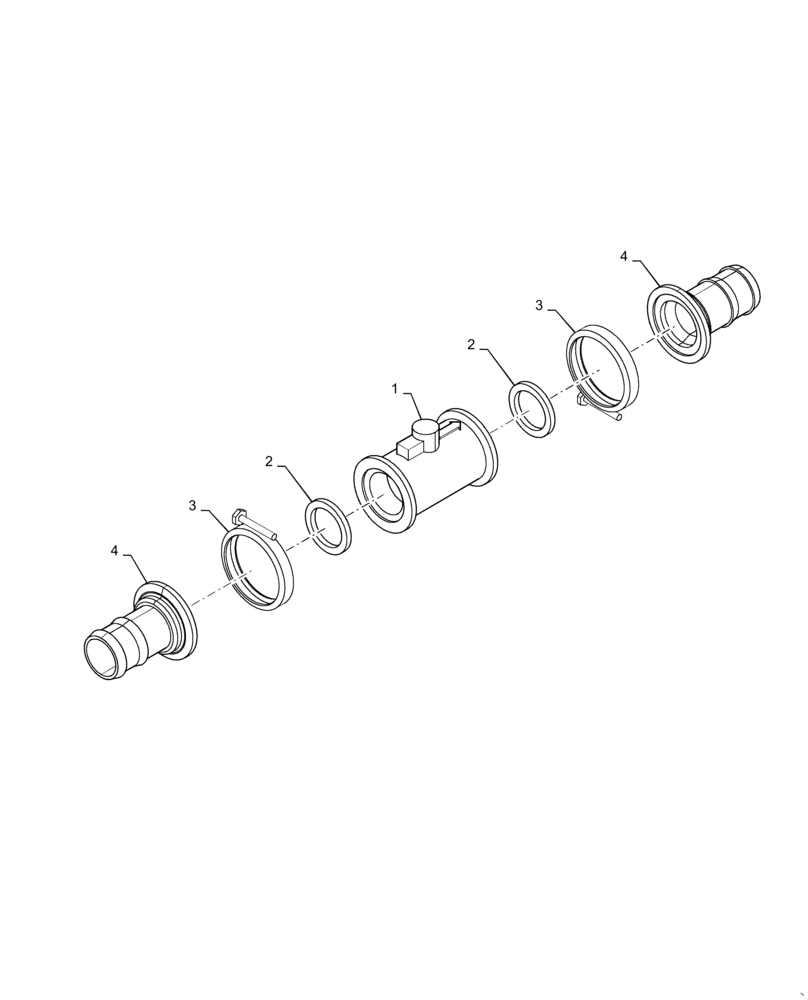

Запчасти Case IH 3185 (09-052) - FLOW METER GROUP Liquid Plumbing

1

87271267

MEASURING INSTRUMENT

Flowmeter, RFM60P H/P W/D

1шт.

See Fig. 09-053

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

4

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

2шт.
