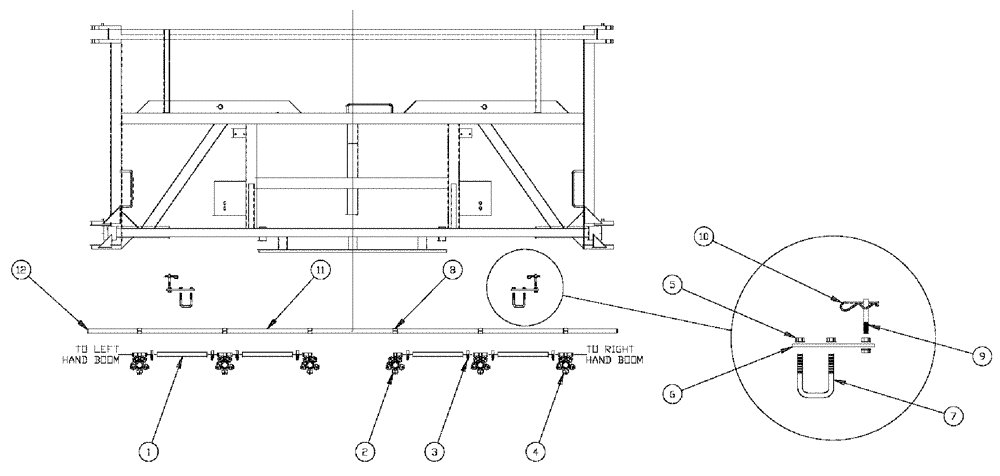

Запчасти Case IH 3185 (09-048) - 90 CENTER, 6 - BOOM SHUTOFF, 20" NOZZLE SPACING Liquid Plumbing

1

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

4шт.

2

BN69475

NOZZLE

5 way single, 3/4" SHA

2шт.

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN74618

1-WAY SINGLE 3/4" SHA

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

3

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

8шт.

4

BN68699

NOZZLE

5 way double, 3/4" SHA

4шт.

BN74621

NOZZLE

3-WAY DOUBLE 3/4" SHA

4шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

4шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

5

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

6

BN67279

BRACKET

mount, dry boom

2шт.

7

BN67284

U-BOLT

3/8", square bend - 1.25" ID

2шт.

8

BN74448

CLAMP

1" square tubing

6шт.

9

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN24486

TUBE

1" Sq x 124"

1шт.

12

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.
