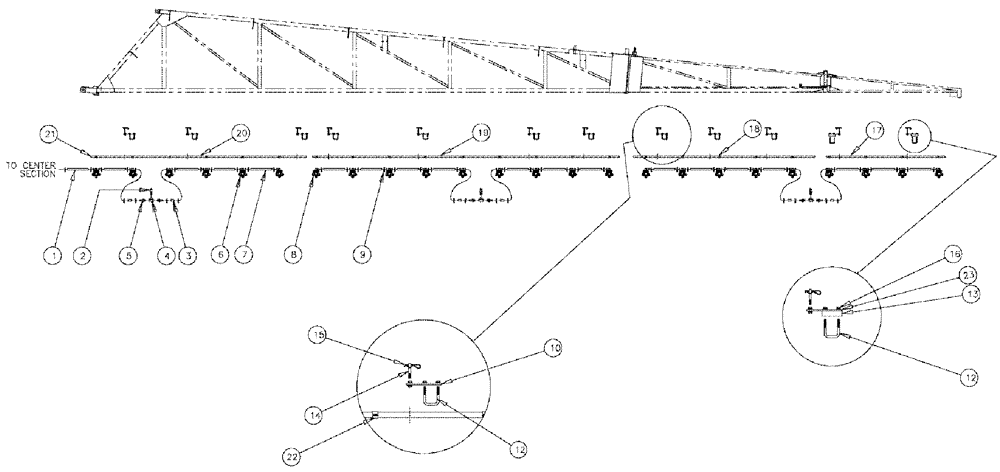

Запчасти Case IH 3185 (09-046) - 90 RH/LH, 6 - BOOM SHUTOFF, 20" NOZZLE SPACING (RH SHOWN) Liquid Plumbing

1

BN53914

HOSE,0.75" ID x 60.00"

1шт.

2

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

3шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

6шт.

4

BN73629

TEE

1" Poly Pipe

3шт.

5

BN53666

FITTING

HOSEBARB-1 NPT X 3/4 HOSE

6шт.

6

BN68699

NOZZLE

5 way double, 3/4" SHA

19шт.

BN74621

NOZZLE

3-WAY DOUBLE 3/4" SHA

19шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

19шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

18шт.

8

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN74618

1-WAY SINGLE 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

9

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

50шт.

10

BN67279

BRACKET

mount, dry boom

10шт.

12

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

12шт.

15

BN71006

COTTER PIN

1/8", #11

12шт.

16

BN50062

LOCK NUT,3/8"-16, Stainless Steel

48шт.

17

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

18

BN67274

TUBE

nozzle mount

1шт.

19

BN67275

TUBE

nozzle mount

1шт.

20

BN67277

TUBE

nozzle mount

1шт.

21

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

22

BN74448

CLAMP

1" square tubing

24шт.

23

87270118

MOUNTING PLATE

Bracket, Dry Breakaway

2шт.
