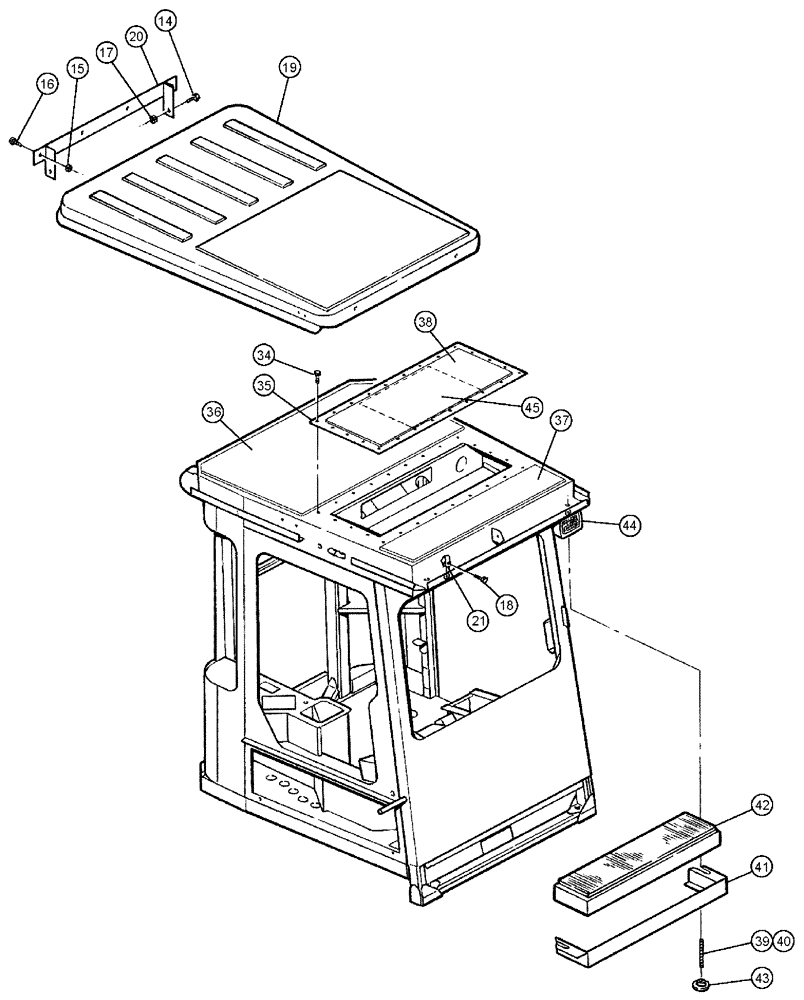

Запчасти Case IH 3185 (02-001) - ROOF ASSEMBLY Cab Exterior

14

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

15

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

16

BN50222

BOLT

5/16-18 X .75, TH, SS, PH

4шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

18

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

2шт.

19

BN311759

ROOF

Cab (Red)

1шт.

20

BN67226

HINGE

HALF WELDMENT

1шт.

21

BN69828

NUT

U 3/8"-16

2шт.

34

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

28шт.

35

BN304231

PANEL

ACCESS, ROOF

1шт.

35a

BN300175

WASHER

3/8", G8

28шт.

Associated Part of Access Panel, Roof, P/N BN304231

1шт.

35b

BN304228

RUBBER SEAL

RUBBER SEAL 1/4 X 3/4 X 43.5

1шт.

Associated Part of Access Panel, Roof, P/N BN304231

1шт.

35c

BN304229

RUBBER SEAL

RUBBER SEAL 1/4 X 3/4 X 45.75

1шт.

Associated Part of Access Panel, Roof, P/N BN304231

1шт.

35d

BN304230

RUBBER SEAL

1/4 x 3/4 x 19

2шт.

Associated Part of Access Panel, Roof, P/N BN304231

1шт.

36

BN304240

RUBBER INSULATOR

CAB ROOF, RR

1шт.

37

BN304239

RUBBER INSULATOR

CAB ROOF, FR

1шт.

38

BN304232

RUBBER INSULATOR

ACCESS PANEL

1шт.

39

BN22055

ROD

3/8"-16, x 2.38, SS, Threaded

2шт.

40

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

41

BN65271

RETAINER

Weldment, Filter

1шт.

42

87267368

CAB FILTER,663mm x 152mm x 65mm, Charcoal

Charcoal, Panel

1шт.

42a

87267364

DECAL

Cab Filter Service

1шт.

Associated Part of Filter, Cab Charcoal, Panel, P/N 87267368

1шт.

43

BN65448

KNOB

3/8"-16(F)

2шт.

43a

BN50146

WASHER,3/8", Stainless

2шт.

Associated Part of Knob, 3/8"-16(f), P/N BN65448

1шт.

44

BN66131

WORK LAMP,Halogen, 12V, 55W, Clear

Flood - Pedestal Mount

4шт.

44a

BN300873

BULB

Halogen, H3 12 volt

1шт.

Service Parts for Ref. 44

1шт.

45

BN319432

FOAM

Roof Panel, Bottom

1шт.
