(09-044) - 90 6 - BOOM SHUTOFF RAVEN LH BOOM

Запчасти Case IH 3185 (09-044) - 90 6 - BOOM SHUTOFF RAVEN LH BOOM Liquid Plumbing

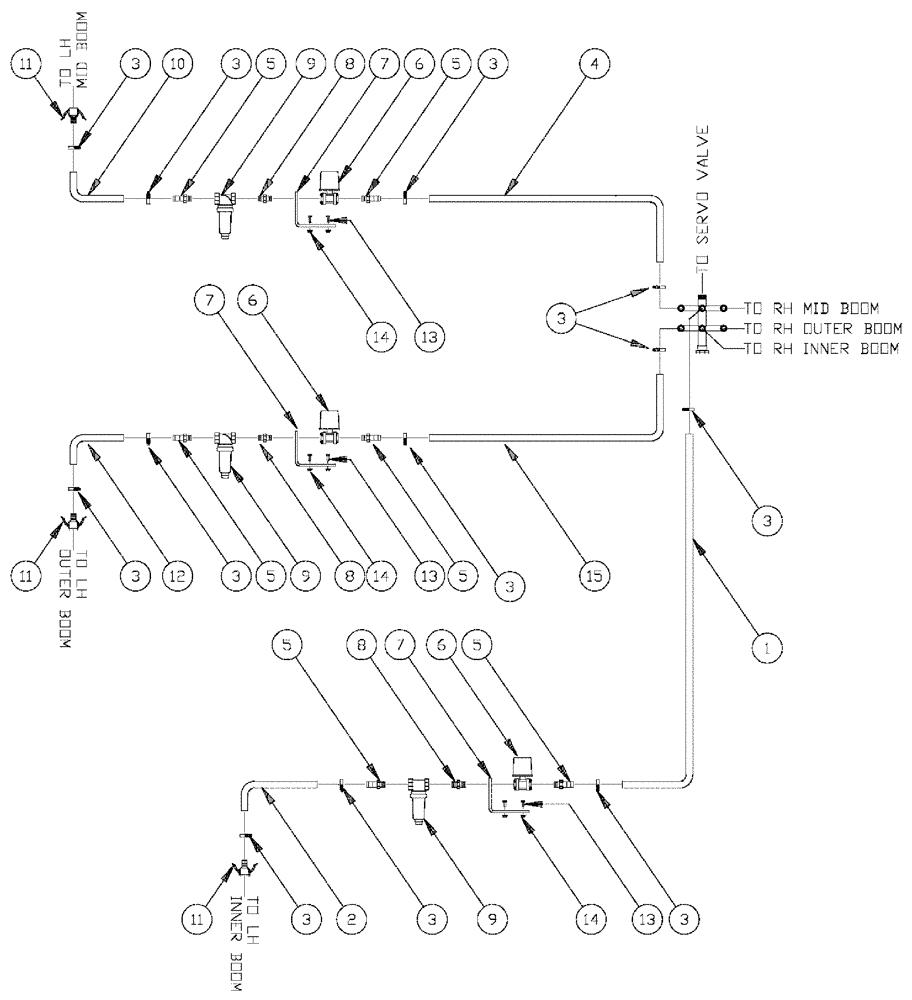

Схема запчастей Case IH 3185 - (09-044) - 90 6 - BOOM SHUTOFF RAVEN LH BOOM Liquid Plumbing
3
3
13
3
5
3
6
5
13
9
11
3
1
8
15
5
5
6
5
58
12
3
14
14
4
5
11
9
9
11
2
8
7
13
11
7
3
3
7
3
3
10
6
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN66857

HOSE

1" EPDM x 15.00"

1шт.

2

BN66858

HOSE

1" EPDMX 31.00"

1шт.

3

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

4

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

6

87389559

VALVE

Electric, 1" Ball

3шт.

See Fig. 09-102

1шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

3шт.

9

BN73681

FILTER STRAINER

1"

3шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

10

BN67565

HOSE

1" EPDM x 350.00"

1шт.

11

BN53668

COUPLING

1" Female, HS SHK

3шт.

12

BN66855

HOSE

1" EPDM x 26.00"

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

14

280129

NUT,1/4"-20

6шт.

15

BN66854

HOSE

1" EPDM x 135.00"

1шт.
