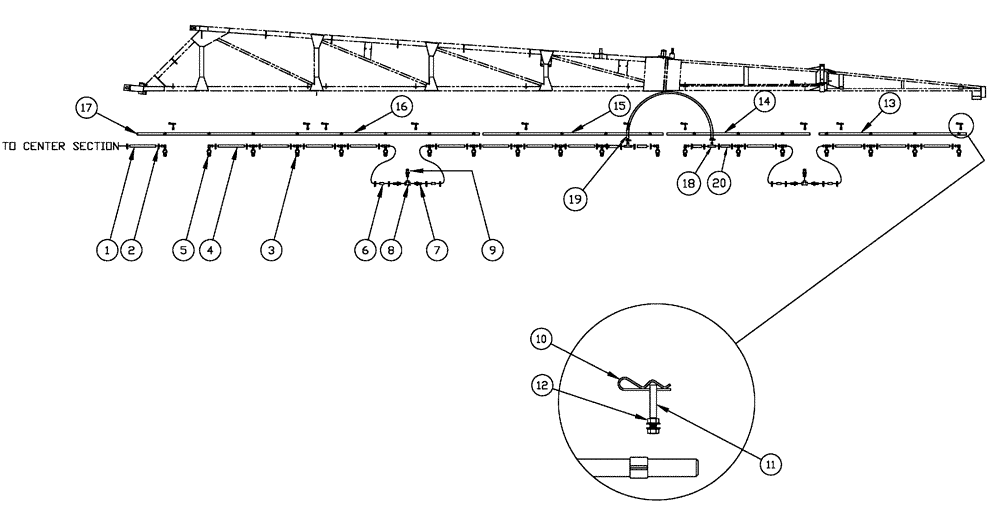

Запчасти Case IH 3185 (09-041) - 75 RH/LH, 20" ON, DUAL WILGER Liquid Plumbing

1

BN53749

HOSE,0.75" ID x 36.00"

1шт.

2

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

44шт.

3

NS

NOT SERVICED

2 Way Wilger Assembly

14шт.

See Fig. 11-010

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

12шт.

5

NS

NOT SERVICED

1 Way Wilger Assembly

5шт.

See Fig. 11-011

1шт.

6

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

7

BN53666

FITTING

HOSE BARB, 1 NPT X 3/4 HOSE

4шт.

8

BN73629

TEE

1" Poly Pipe

2шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN71006

COTTER PIN

1/8", #11

10шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

12

BN50062

LOCK NUT,3/8"-16, Stainless Steel

20шт.

13

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

14

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

15

BN24477

TUBE

1" Sq x 81.5"

1шт.

16

BN24478

TUBE

1" Sq x 155"

1шт.

17

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

18

BN317236

TEE

3/4” x 3/4” x 3/4” HB

2шт.

19

BN53866

HOSE, EPDM 3/4"ID X 76"

1шт.

20

BN53862

HOSE, EPDM 3/4"ID X 8.5"

1шт.
