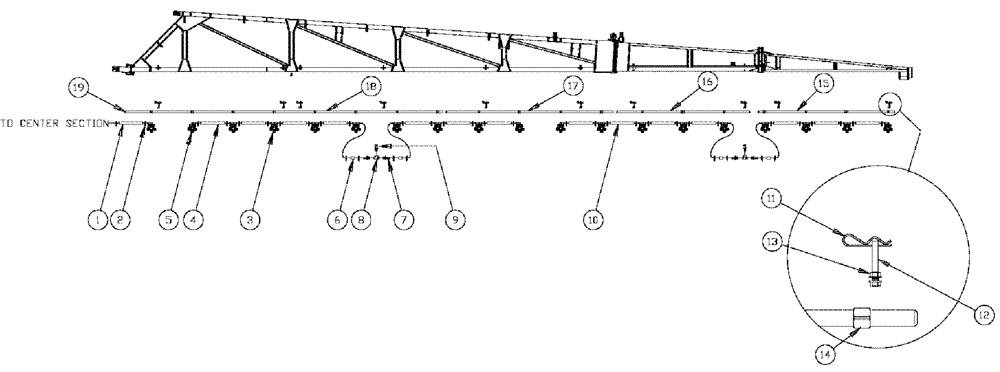

Запчасти Case IH 3185 (09-040) - 75 RH/LH, 5 - BOOM SHUTOFF, 20" NOZZLE SPACING Liquid Plumbing

1

BN53749

HOSE,0.75" ID x 36.00"

1шт.

2

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

38шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

14шт.

BN74621

NOZZLE

3-WAY DOUBLE 3/4" SHA

14шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

14шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

13шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN74618

1-WAY SINGLE 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

6

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

7

BN53666

FITTING

HOSE BARB-1 NPT X 3/4 HOSE

4шт.

8

BN73629

TEE

1" Poly Pipe

2шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

11

BN71006

COTTER PIN

1/8", #11

10шт.

12

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

13

BN50062

LOCK NUT,3/8"-16, Stainless Steel

20шт.

14

BN74448

CLAMP

1" square tubing

19шт.

15

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

16

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

17

BN24477

TUBE

1" Sq x 81.5"

1шт.

18

BN24478

TUBE

1" Sq x 155"

1шт.

19

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.
