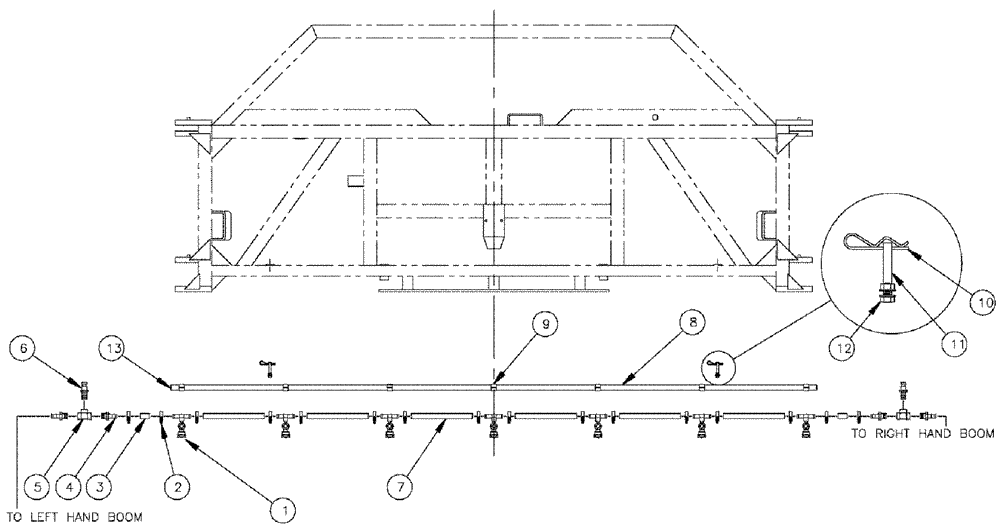

Запчасти Case IH 3185 (09-039) - 75 CENTER, 3 - BOOM SHUTOFF, 20" NOZZLE SPACING Liquid Plumbing

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

7шт.

2

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

16шт.

3

BN53843

HOSE,0.75" ID x 12.50"

2шт.

4

BN53666

FITTING

HOSE BARB-1 NPT X 3/4 HOSE

4шт.

5

BN73629

TEE

1" Poly Pipe

2шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

6шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

7шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.
