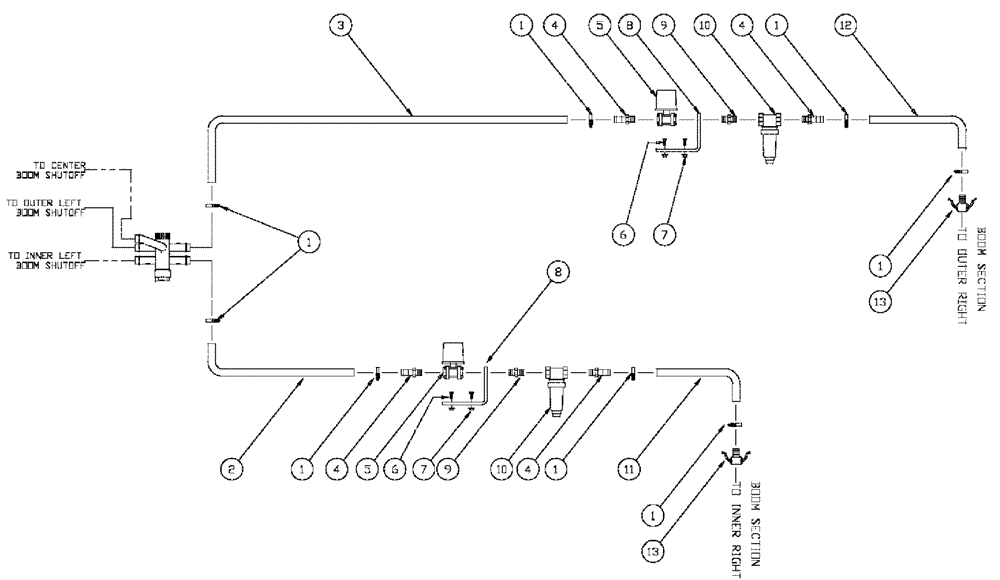

Запчасти Case IH 3185 (09-036) - 75 5 - BOOM SHUTOFF RH BOOM Liquid Plumbing

1

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

2

BN53758

HOSE,222.00"

1шт.

3

BN67565

HOSE

1" EPDM x 350.00"

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

5

87389559

VALVE

Electric, 1" Ball

2шт.

See Fig. 09-052

1шт.

6

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

7

280129

NUT,1/4"-20

4шт.

8

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

9

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

10

BN73681

FILTER STRAINER

1"

2шт.

10a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN53871

1" EPDM X 18.0"

1шт.

12

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

Cut 108" from bulk roll

1шт.

13

BN53668

COUPLING

1" Female, HS SHK

2шт.
