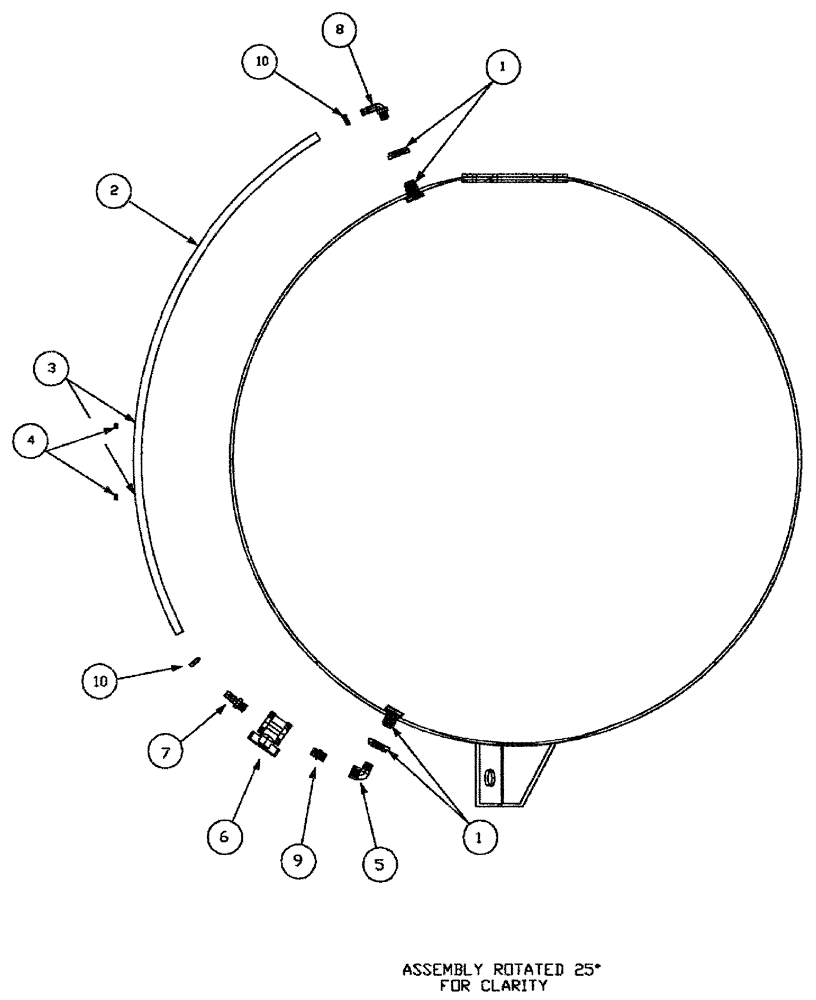

Запчасти Case IH 3185 (09-031) - SIGHT GAUGE PACKAGE, SPHERICAL TANK Liquid Plumbing

1

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

2

BN320451

HOSE,0.75" ID x 81.50"

1шт.

3

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

86528579

NUT,M8 x 1.25

2шт.

5

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

6

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

7

BN73561

FITTING

BARB, 3/4 NPT X 3/4 HS

1шт.

8

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

9

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

10

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.
