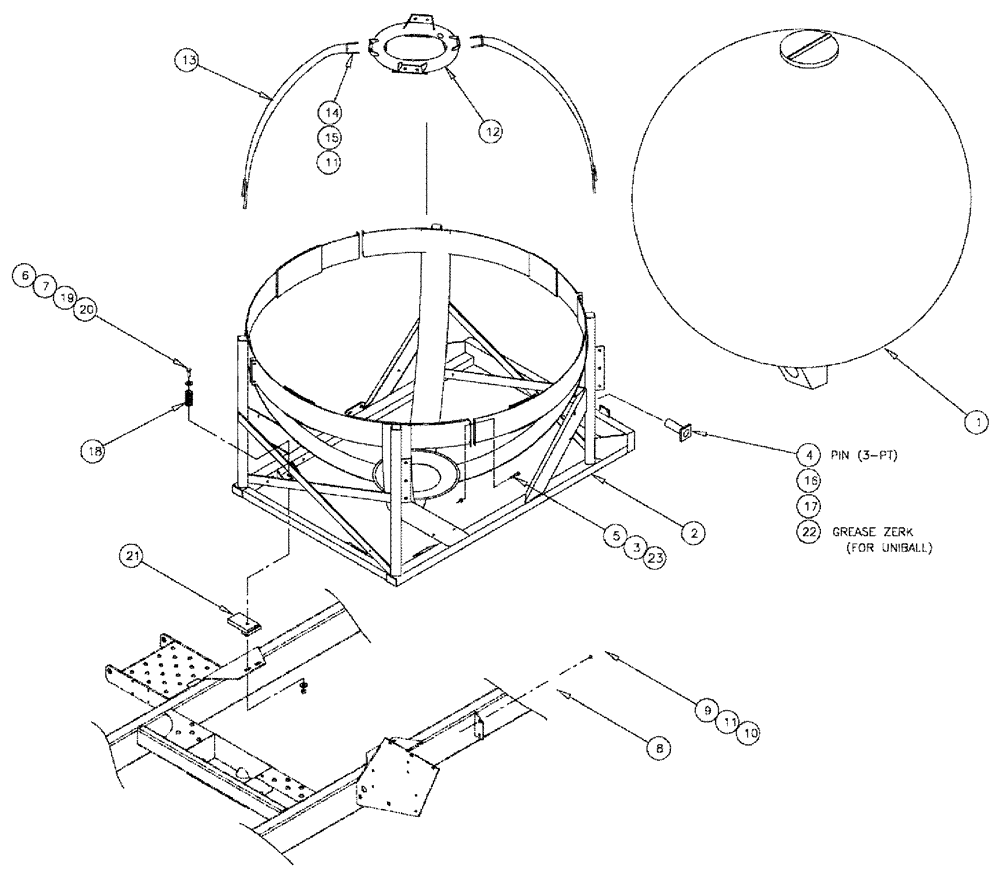

Запчасти Case IH 3185 (09-028) - TANK PACKAGE, SPHERICAL Liquid Plumbing

1

BN310967

TANK

750 gallon, sherical, gray

1шт.

See Fig. 09-030

1шт.

2

344202A1

BASKET ASSY

Spherical, 3PT

1шт.

2

BN319371

LINER

Tank, Spherical

4шт.

Not Shown

1шт.

2

BN54039

ADHESIVE

Spray 18 oz

1шт.

Not Shown

1шт.

3

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

4

BN300279

PIN

1 1/4" X 4 1/2"

1шт.

5

88902

NUT,3/8"-16

8шт.

6

86992215

LOCK NUT,1/2"-13, GC

2шт.

7

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

0.531 X 1.75 X 0.1 CST DOR

4шт.

8

BN322048

SUPPORT

SUPPORT, VALVE

1шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

11

BN50146

WASHER,3/8", Stainless

34шт.

12

BN319677

RETAINER

Assembly, Spherical Basket

1шт.

12

BN319370

LINER

Tank Retainer

4шт.

Not Shown

1шт.

13

BN319351

STRAP

tank retainer

4шт.

14

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

16

BN148976

PIN, ROLL

1/4" x 1 3/4"

1шт.

17

BN2298335

WASHER

hardened 1 1/4

1шт.

18

BN312850

SPRING

1" ID x 4" Lg-Die

2шт.

19

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

20

BN50157

WASHER

3/4, FW, G5

2шт.

21

BN319880

SPACER

WLDMT-SPHR BASKT

2шт.

22

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

23

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8-16 X 2-1/2", Stainless Steel

4шт.
