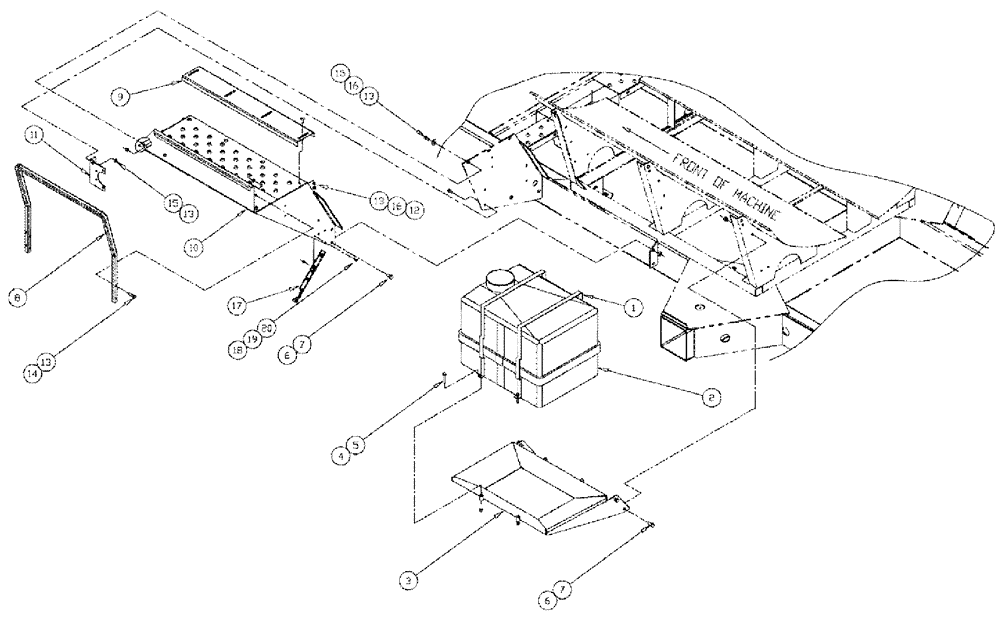

Запчасти Case IH 3185 (09-026) - RINSE TANK & DECK ASSEMBLY, ELIPTICAL Liquid Plumbing

1

BN63984

STRAP

14 GA Hrs 1 x 49.5

2шт.

2

BN318815

TANK

assembly, 35 gallon, vented

1шт.

See Fig. 09-025

1шт.

3

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

4

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

6

87342791

BOLT

BLT, 1/2-13 X 1, 5

6шт.

7

87343666

NUT

Hex, 1/2"-13, G5

6шт.

8

BN24525

TUBE

Railing 12 ga 1 x 1 x 71.12

1шт.

9

BN24513

BRACKET

12 GA HRS 7.0 x 34.50

1шт.

10

BN318539

PLATFORM ASSY.

Deck, LH, 800 Elliptical

1шт.

11

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

12

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

13

87343970

NUT,3/8"-16, G8, DOR

17шт.

14

87342769

BOLT

3/8-16 X 1-1/2, 5

4шт.

15

87342763

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Hex, 3/8"-16 x 3/4", G5

5шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

7шт.

17

BN322048

SUPPORT

SUPPORT, VALVE

1шт.

BN69411

VALVE

SUPPORT

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

18

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

19

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

20

87343959

NUT,5/16" - 18, GR B, DOR

2шт.
