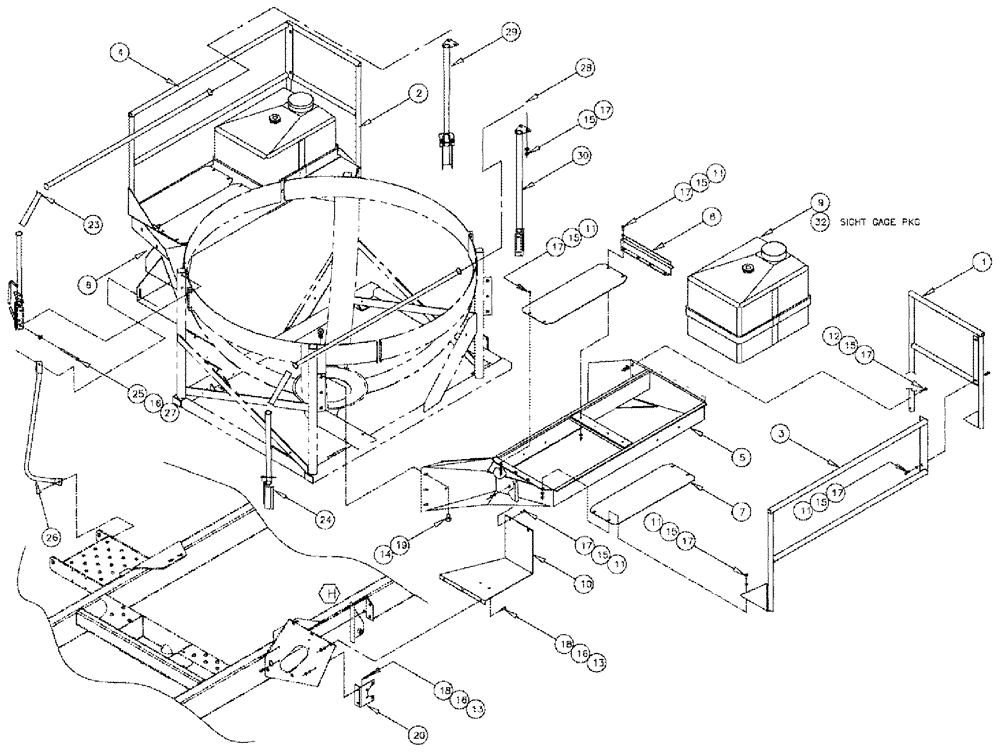

Запчасти Case IH 3185 (09-025) - RINSE TANK & DECK ASSEMBLY, SPHERICAL Liquid Plumbing

1

BN65109

SIDE RAIL

END, L.H.

1шт.

2

BN65171

SIDE RAIL

END, R.H.

1шт.

3

BN67912

RAIL

SIDE -SAFETY L.H.

1шт.

4

BN68000

RAIL

SIDE SAFETY R.H.

1шт.

5

BN68006

PLATFORM ASSY.

WELDMENT, WALKWAY MT L.H.

1шт.

6

BN68005

PLATFORM ASSY.

WELDMENT, WALKWAY MT R.H.

1шт.

7

BN68001

PLATE

SHEET, DECK

4шт.

8

BN25399

PLATE

Clamp 12 ga x 4.5 x 17

2шт.

9

BN317164

TANK

35 gallon

2шт.

BN311055

TANK

35 GAL (GRAY)

1шт.

Parts of Assy, Tank 35 Gal, P/N BN317164

1шт.

BN314276

COVER

(35 GAL POLY TANK)

1шт.

Parts of Assy, Tank 35 Gal, P/N BN317164

1шт.

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

Parts of Assy, Tank 35 Gal, P/N BN317164

1шт.

BN73733

FITTING

1 1/2" Bulkhead

1шт.

Parts of Assy, Tank 35 Gal, P/N BN317164

1шт.

10

BN67918

STEP

1шт.

11

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

30шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

4шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

7шт.

14

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

12шт.

15

BN50142

WASHER,5/16", Stainless Steel

72шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

21шт.

17

280736

NUT,5/16"-18, GC

30шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

7шт.

19

86992215

LOCK NUT,1/2"-13, GC

12шт.

20

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

24

BN312102

HANDRAIL

Weldment, LH

1шт.

25

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

26

BN312670

RAIL ASSY.

R.H.

1шт.

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

Associated Part of Rail Assembly, P/N BN312670

1шт.

BN312648

HANDLE

ACCESS

1шт.

Associated Part of Rail Assembly, P/N BN312670

1шт.

BN50131

LOCK NUT

3/8-16, CTL, G5

2шт.

Associated Part of Rail Assembly, P/N BN312670

1шт.

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

Associated Part of Rail Assembly, P/N BN312670

1шт.

27

88902

NUT,3/8"-16

8шт.

28

BN305201

U-BOLT

BOLT "U" .31 x 1.75 304SS

2шт.

29

BN313313

MOUNTING PARTS

WLDMNT, SUPPORT, R.H.

1шт.

30

BN313314

MOUNTING PARTS

WLDMNT, SUPPORT, L.H.

1шт.

32

BN319053

SIGHT GAGE PKG, RINSE (SPHERE), SEE FIG. 09-028

2шт.
