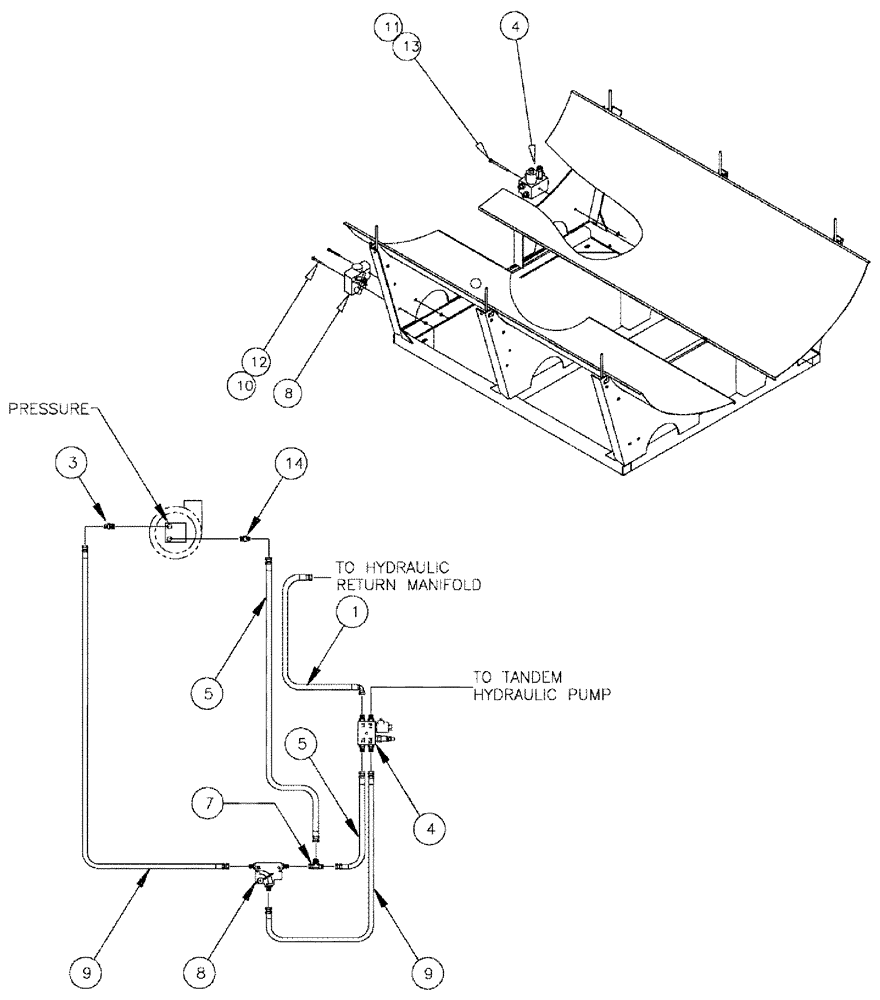

Запчасти Case IH 3185 (09-024) - HYDRAULIC GROUP, ELIPTICAL Liquid Plumbing

1

BN311289

HOSE,0.75" ID x 31.00"

100R2

1шт.

3

BN444004

FITTING

O-RING 37 FLARE

1шт.

BN441006

ADAPTER

1/2 NPT-8 JIC

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

4

BN311288

HYDRAULIC VALVE

W/ADPTRS

1шт.

See Fig. 06-029

1шт.

5

BN53563

HOSE,0.75" ID x 54.00"

100R2

2шт.

7

BN53573

TEE

jic-1 1/16, male-female

1шт.

8

BN311338

REGULATOR

flow

1шт.

See Fig. 06-030

1шт.

9

BN54238

HOSE

1/2" x 42", 100R2

2шт.

10

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

5/16-18 X 4, HH, SS

1шт.

12

280129

NUT,1/4"-20

2шт.

13

280736

NUT,5/16"-18, GC

1шт.

14

BN66219

FITTING

12MJ-8MB

1шт.

BN52288

ADAPTER

ADPT, 1/2"-14 X 1 1/16-12

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.
