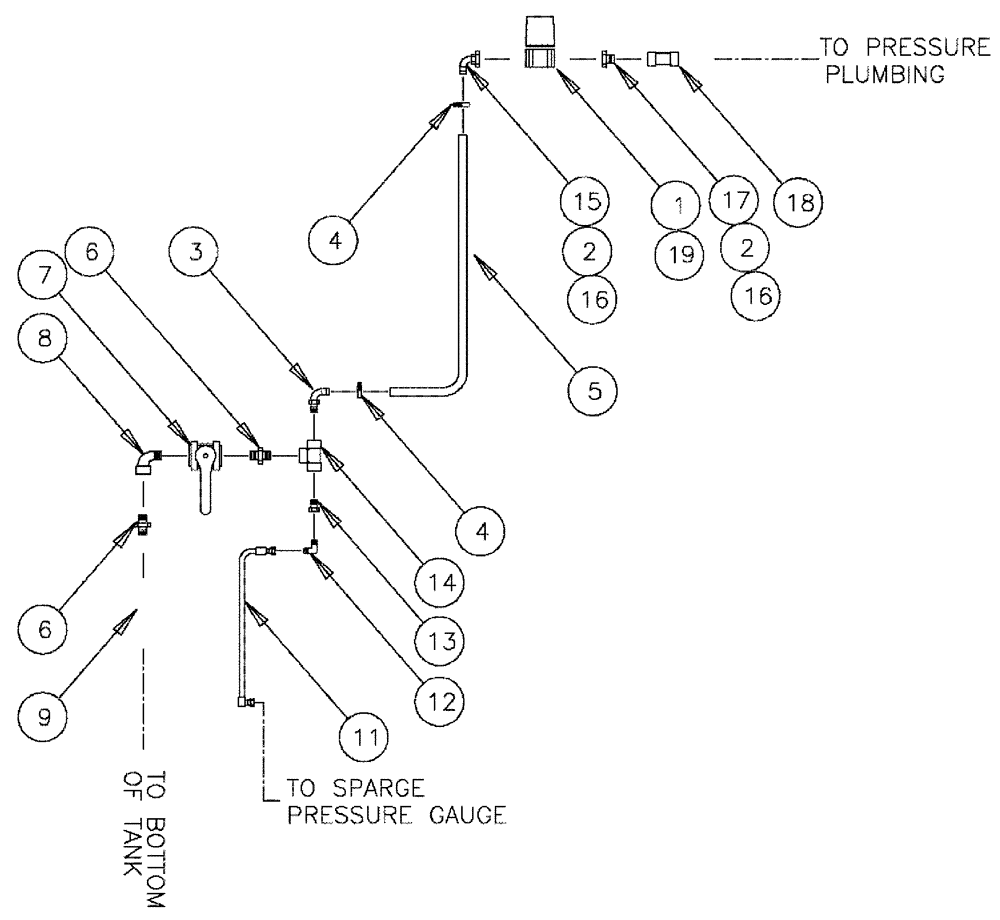

Запчасти Case IH 3185 (09-021) - SPARGE PLUMBING, SPHERICAL Liquid Plumbing

1

87267520

VALVE,STD Port Regulating 1”, 8 Second, 2 Wire ARBB

ELECTRIC 1", 2 WIRE

1шт.

2

BN303203

CLAMP,1" Flange

1" FLG MANIFOLD

1шт.

3

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

4

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

5

BN53915

HOSE,0.75" ID x 32.00"

1шт.

6

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

7

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

8

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

9

BN304248

AGITATOR

Tank Mixing

1шт.

11

BN67392

HOSE

3/8" x 144" EPDM

1шт.

12

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

14

BN73560

TEE

3/4" POLY PIPE

1шт.

15

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

1шт.

16

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

17

BN306903

MANIFOLD,1" Flange x 1" Male NPT, Poly

STR 1" X 1" male

2шт.

18

BN66968

COUPLING

1" Poly

1шт.

19

87271140

WIRE HARNESS

2 Wire, Polarity CRS

1шт.
