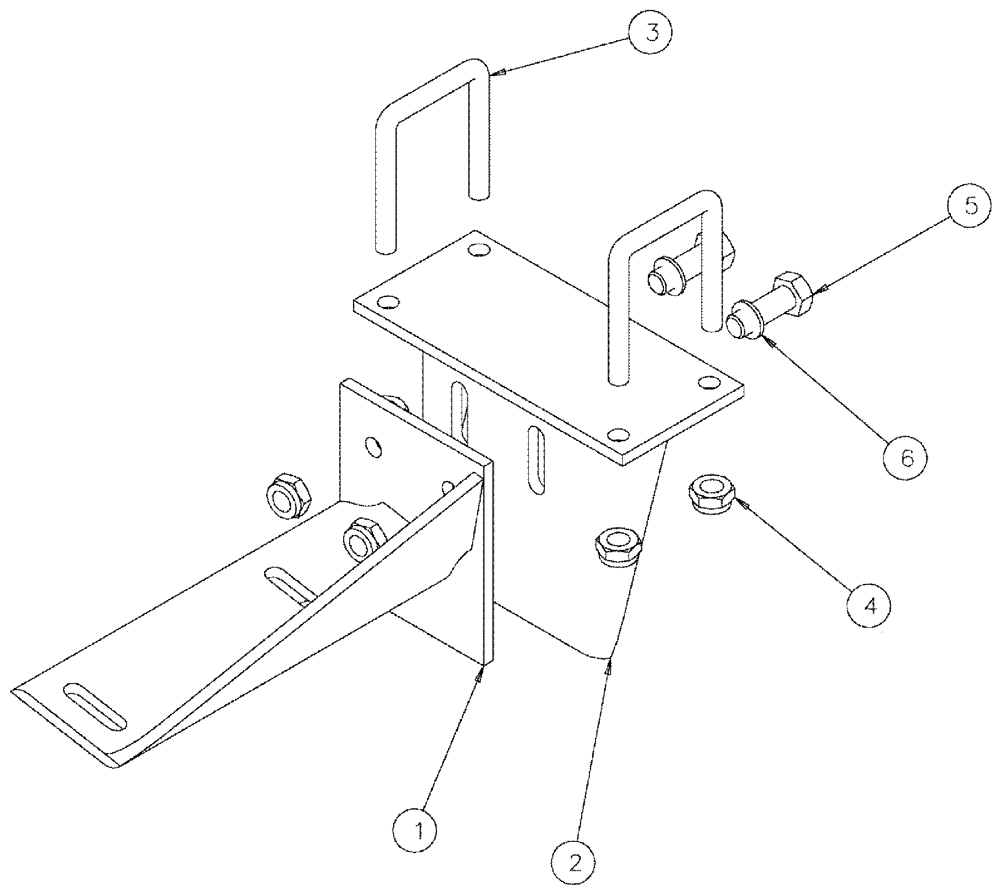

Запчасти Case IH 3185 (09-018) - PUMP MOUNTING ASSEMBLY Liquid Plumbing

1

BN304480

MOUNTING PLATE

PUMP WELDMENT

1шт.

2

87267390

PUMP

MT785E

1шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

1шт.

4

BN320372

NUT

3/8"-16, TL, G5

6шт.

5

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

6

BN325184

WASHER

3/8, FW, SS, HVY, SPEC #MS815

2шт.
