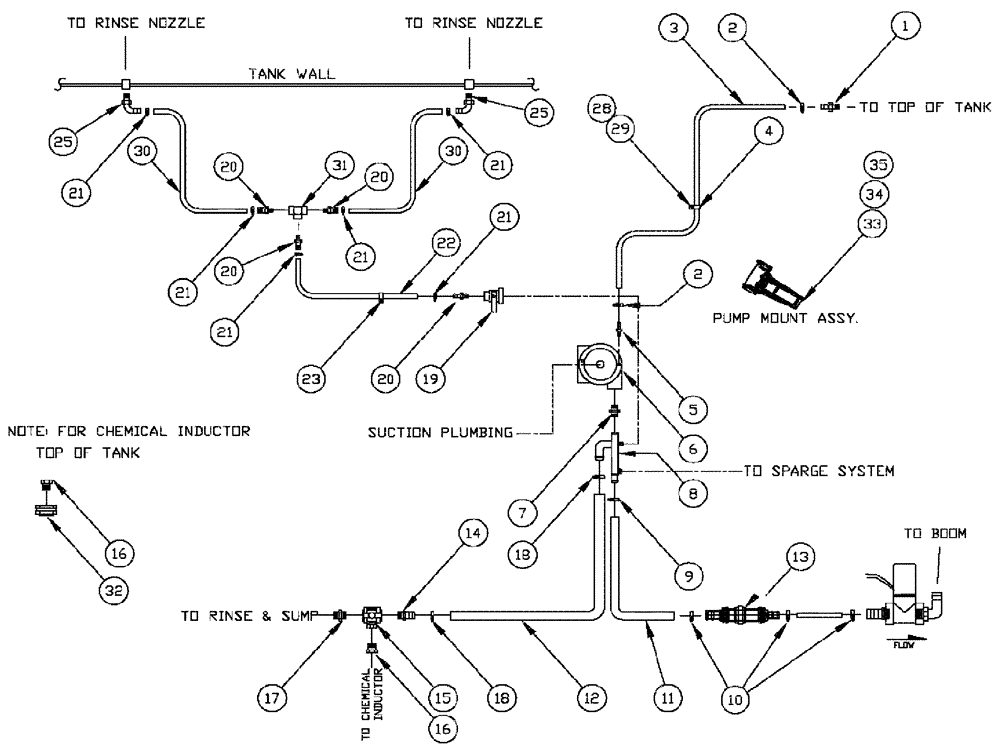

Запчасти Case IH 3185 (09-016) - PRESSURE PLUMBING, ELIPTICAL Liquid Plumbing

1

BN53433

FITTING

FT, HB, 1/4" NPT X 1/4" HS, STL

1шт.

2

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

2шт.

3

BN53786

HOSE

1/4" EPDM X 92.0"

1шт.

4

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

6

BN53670

HYDROSTATIC PUMP

Hypro w/HMI Motor

1шт.

See Fig. 09-012

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

3185 (8/04 - 5/09)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

7

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

8

BN29958

MANIFOLD

Liq. Product 770

1шт.

9

BN53810

HOSE CLAMP

1.75" ID "T" BOLT

1шт.

10

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300

3шт.

11

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

12

BN53754

HOSE,12.50"

1шт.

13

87377607

HYDROMETER

Flow Group, With Deutsch Connector, Start Serial: 20614

1шт.

See Fig. 09-052

1шт.

87265850

HYDROMETER

Raven RFM-55, With Deutsch

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

14

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

15

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

16

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

17

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

18

BN53811

CLAMP

2" ID, T-bolt

2шт.

19

BN324588

VALVE

Ball 3/4" SU Poly

1шт.

20

BN73561

FITTING

BARB, 3/4NPT X 3/4 HS

4шт.

21

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

6шт.

22

BN53766

3/4" EPDM X 92.0"

1шт.

23

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

BN73684

ELBOW

Barb, 90° 1" MPT x 3/4" Barb

2шт.

28

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

29

BN50054

NUT,1/4"-20, SS

1шт.

30

BN53857

HOSE,0.75" ID x 26.00"

Flexible

2шт.

31

BN73560

TEE

3/4" POLY PIPE

1шт.

32

BN73733

FITTING

1 1/2" Bulkhead

1шт.

33

NS

NOT SERVICED

Pump Mounting Assembly, 785 E

1шт.

See Fig. 09-018

1шт.

34

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

35

88902

NUT,3/8"-16

2шт.
