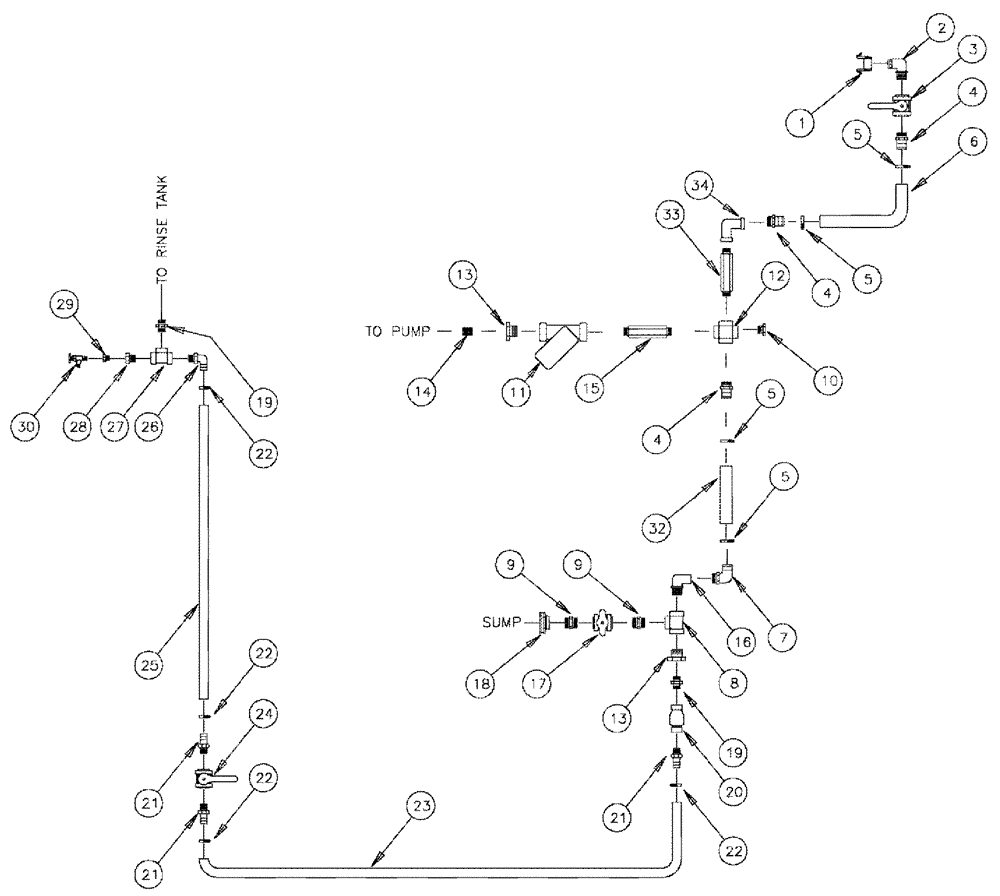

Запчасти Case IH 3185 (09-015) - SUCTION PLUMBING, ELIIPTICAL Liquid Plumbing
№
Артикул
Название
Примечание
Количество
1
BN22901
DUST CAP,2" Cam Lever Dust Cap
2" Cam Lever
1шт.
2
BN25262
ELBOW
90°, 2" NPT
1шт.
3
BN73761
VALVE,2" NPT x 2" NPT
Ball, 2" Full Port
1шт.
4
BN73781
FITTING,2" Male NPT x 2" Hose Barb, Poly
2" NPT x 2" Hose Barb
3шт.
5
BN76056
HOSE CLAMP
#36
4шт.
6
BN304658
HOSE 2.00 X 19.00
1шт.
7
401875A1
FITTING,2" Male Thread x 2" 90 Degree Hose Barb
2" MNPT x 2" Hose Barb, Poly
1шт.
8
BN73779
TEE,2" Poly Tee
2" Poly Pipe
1шт.
9
BN73783
NIPPLE
2" NPT Short Poly
2шт.
10
BN73794
PLUG,2" Male NPT, Poly
2" Poly Pipe
1шт.
11
87265960
FILTER STRAINER,2" x 2" Y Strainer w/30 Mesh Poly Ribbed SS Screen
Strainer, 2" NPT-30 Mesh Rib
1шт.
12
BN73791
CROSS
2" NPT POLY
1шт.
13
BN73787
SLEEVE
BUSH-REDUCER, 2-1.5 POLY
2шт.
14
BN73320
NIPPLE
1.5" NPT Close, SS
1шт.
15
BN73786
NIPPLE
Pipe, Poly, 2" x 4"
1шт.
16
BN73785
ELBOW
90-STREET 2" POLY
1шт.
17
BN73795
VALVE,Full Port; 2 Inch; T Handle
2" Full Port w/Thd
1шт.
18
BN85677
REDUCER
BUSH, 3 X 2 POLY
1шт.
19
BN73727
NIPPLE,1-1/2" NPT x 1-1/4" NPT
1.5 x 1.25 Poly
2шт.
20
BN24567
CHECK VALVE
1 1/4" NPT
1шт.
21
87743696
FITTING
1-1/4" NPT X 1-1/4" Hose Barb, Poly
3шт.
22
87485002
CLAMP,1.06" - 2"
24 2.0/1.06 F SST 300
4шт.
23
BN304657
HOSE 1.25 X 26.00
1шт.
24
BN73658
VALVE,1-1/4" Full Port Valve
Ball, 1-1/4", poly
1шт.
25
BN304656
HOSE-1.25 X 7.50
1шт.
26
BN73663
ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly
1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly
1шт.
27
BN73662
TEE
1-1/4", Poly
1шт.
28
BN73653
BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly
Reducer, 1-1/4" MPT x 3/4" FPT, Poly
1шт.
29
BN73552
BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing
BUSH, 3/4 X 1/2 RED. POLY
1шт.
30
BN53817
DRAIN VALVE
Plastic, 1/2" NPT
1шт.
32
BN68379
HOSE
2" EPDM X 12"
1шт.
33
BN73790
LUBE NIPPLE
2" NPT X 6" POLY
1шт.
34
BN73789
FITTING
ELBOW, 2" 90 DEGREE POLY
1шт.
Выбрано товаров: 33
