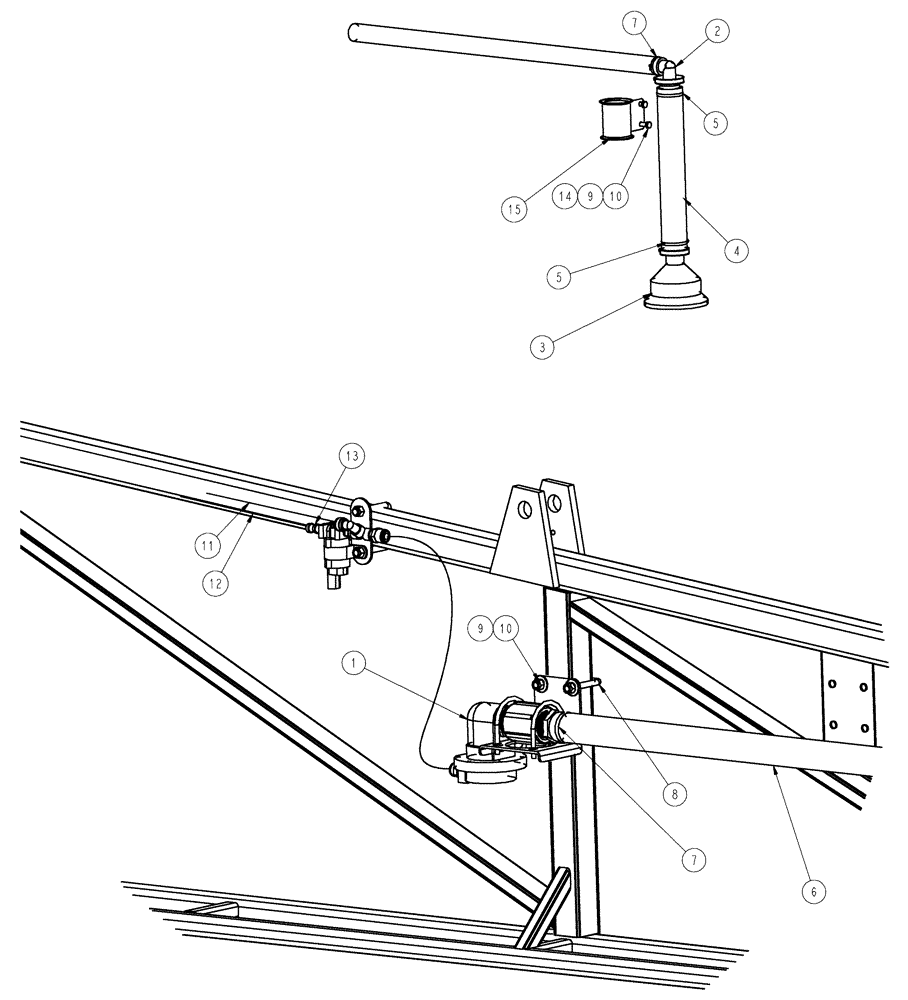

Запчасти Case IH 3185 (09-009) - FOAM CHAMBER DROP, 90, LH Liquid Plumbing

1

87711942

FOAM CHAMBER GROUP, LH SEE FIG. 09-011

1шт.

2

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

3

BN2403252

BELL

Foam Marker

1шт.

4

87266611

HOSE

Foam Drop, 2" x 16"

1шт.

5

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

6

BN322090

HOSE,1.25" ID x 221.00"

Type K

1шт.

7

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

8

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

1шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

342680A1

TUBE

Synflex, 3/8" X 30.5'

1шт.

12

342681A1

HOSE

1/2" x 30.5' EPDM

1шт.

13

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

14

87342767

BOLT

3/8"-16 x 1-1/2", G5, Full Thd

2шт.

15

BN313496

MOUNTING PLATE

WLDT, FOAM MKR

1шт.
