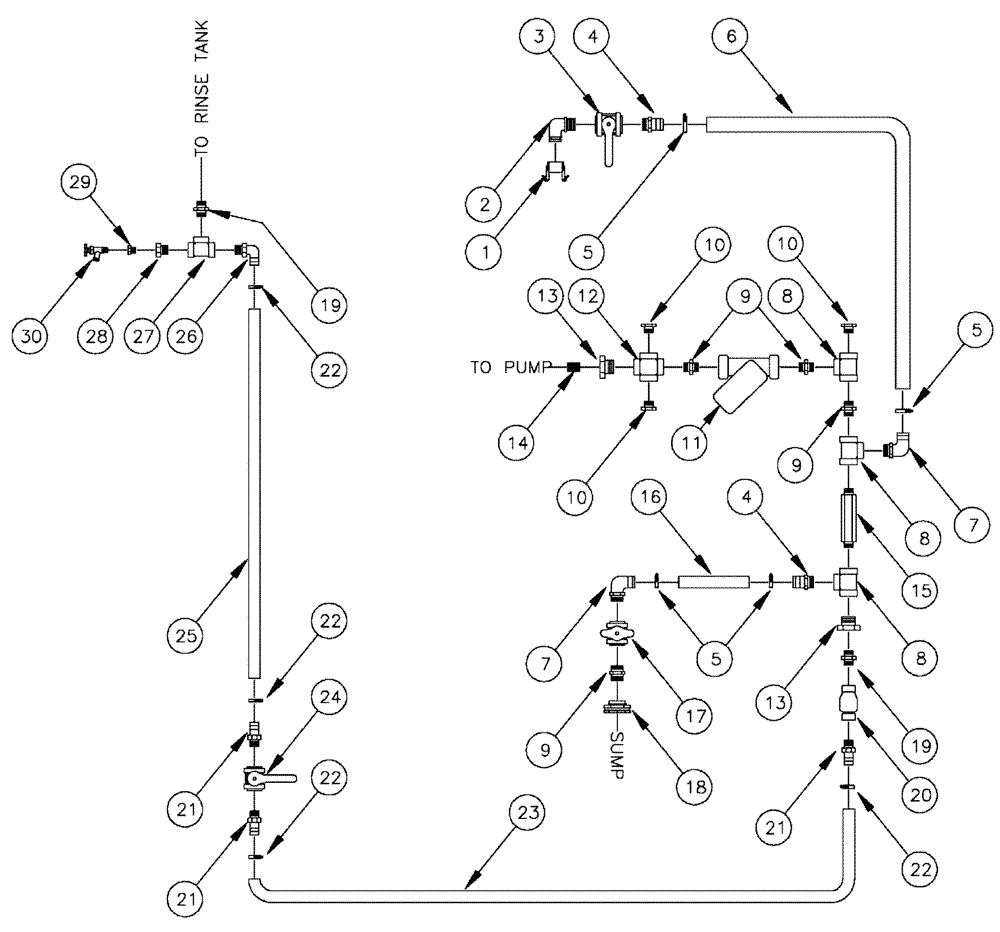

Запчасти Case IH 3150 (09-003) - SUCTION PLUMBING, SPHERICAL Liquid Plumbing

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN25262

ELBOW

90°, 2" NPT

1шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

4

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

5

BN76056

HOSE CLAMP

#36

4шт.

6

BN68377

HOSE

2" EPDM x 50"

1шт.

7

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

8

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

9

BN73783

NIPPLE

2" NPT Short Poly

5шт.

10

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

3шт.

11

87265960

FILTER STRAINER,2" x 2" Y Strainer w/30 Mesh Poly Ribbed SS Screen

Strainer, 2" NPT-30 Mesh Rib

1шт.

12

BN73791

CROSS

2" NPT POLY

1шт.

13

BN73787

SLEEVE

BUSH-REDUCER 2-1.5 POLY

2шт.

14

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

15

BN73786

NIPPLE

Plumbing Support

1шт.

16

BN65559

HOSE

2" EPDM x 9.00"

1шт.

17

BN73795

VALVE,Full Port; 2 Inch; T Handle

2" Full Port w/Thd

1шт.

18

BN51098

HOSE CLAMP

HOSE #48

1шт.

19

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

20

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

21

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

3шт.

22

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300

4шт.

23

BN53930

HOSE,68.00"

1шт.

24

BN73658

VALVE,1-1/4" Full Port Valve

Ball, 1-1/4", poly

1шт.

25

BN53929

HOSE,7.00"

1шт.

26

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

27

BN73662

TEE

1-1/4", Poly

1шт.

28

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

29

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

BUSH-3/4 X 1/2 RED. POLY

1шт.

30

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.
