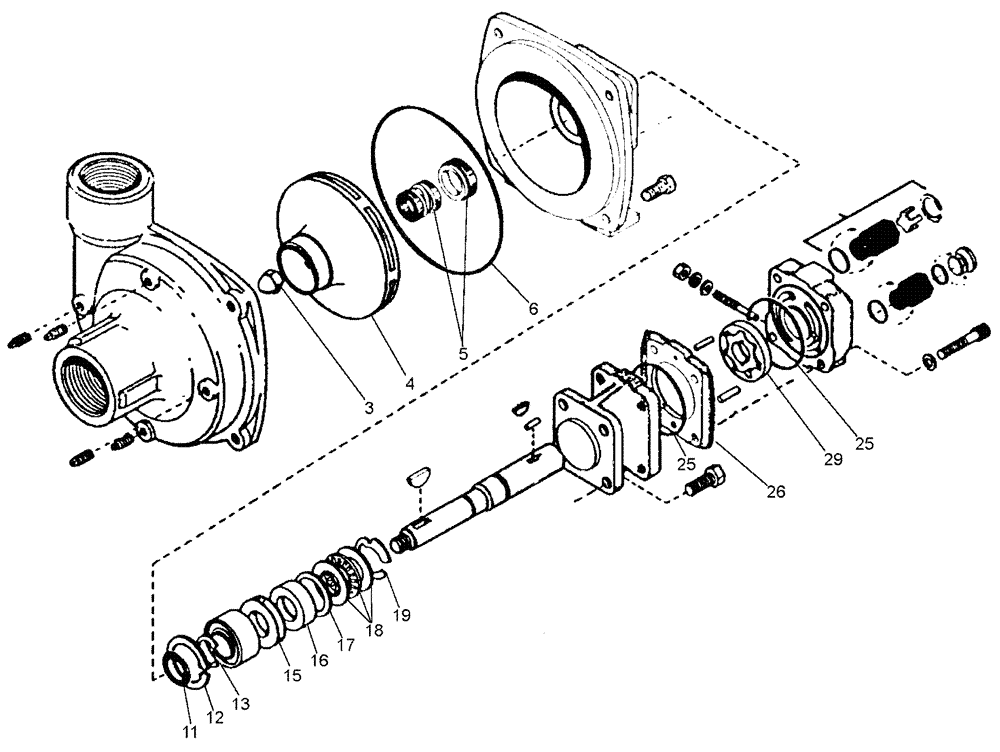

Запчасти Case IH 3150 (09-001) - PRODUCT PUMP Liquid Plumbing

0

BN53670

HYDROSTATIC PUMP

Complete Product Pump

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

3150 (6/04 - 5/09)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

3a

BN311826

SEAL KIT

Pump (All Models)

1шт.

Includes Refs. 3, 5 & 6

1шт.

3

BN53693

NUT

Impeller #3

1шт.

4

BN53692

IMPELLER

#4

1шт.

5

BN98256

SEAL

MECHANICAL (VITRON) 9303 MOD

1шт.

6

BN98257

O-RING

1шт.

11a

BN53768

SEAL KIT

SHAFT

1шт.

Includes Refs. 11, 12, 13, 15, 16, 17, 18, 19

1шт.

11

BN98258

RING

SLINGER

1шт.

12

BN98259

RING

Retaining

1шт.

13

BN98260

SNAP RING

SNAP

1шт.

15

BN98261

SHAFT

Spacer

1шт.

16

BN98262

SEAL

SHAFT

1шт.

17

BN98263

SEAL

Spacer

1шт.

18

BN98264

BEARING ASSY

THRUST-(1) THRUST BRG & (2) THRUST BRG RACES

1шт.

19

BN98265

SHAFT

SNAP RING

1шт.

23a

BN53771

HYDRAULIC MOTOR

HM1

1шт.

Includes Refs. 11 - 36

1шт.

25a

BN53769

REPAIR KIT

Gerotor - HM1 Model

1шт.

Includes Refs. 25, 26, 29 (26 & 29 .5" Wide)

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING

2шт.

26

NSS

NOT SOLD SEPARAT

GEROTOR HOUSING

1шт.

29

NSS

NOT SOLD SEPARAT

GEROTOR

1шт.
