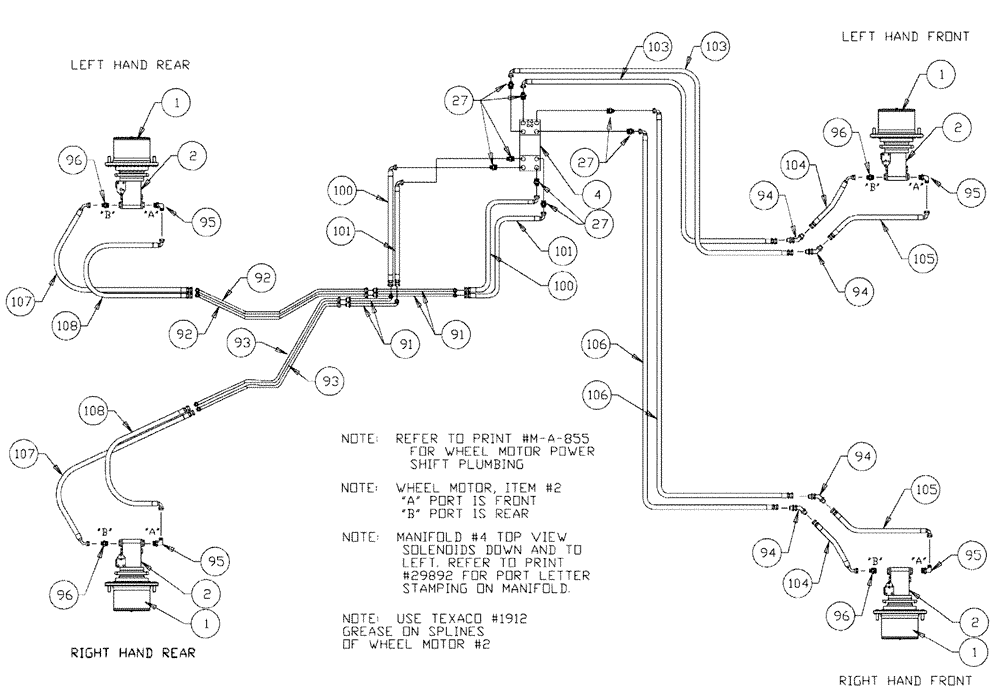

Запчасти Case IH 3150 (06-007) - WHEEL MOTOR PLUMBING Hydraulic Plumbing

1

87270304

HUB

#7, 24:1, Power Wheel

1шт.

See Fig. 05-001

1шт.

BN27372

CAP

hub cover

4шт.

See Fig. 06-001

1шт.

2

BN54215

MOTOR

Wheel

4шт.

See Fig. 06-027

1шт.

BN54215R

REMAN-HYD MOTOR

Patriot 3150,

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

87271985

HYDRAULIC VALVE

Shift Block With Deutsch Connector, Start Serial: 20001

1шт.

See Fig. 06-020

1шт.

BN69418

BLOCK

VALVE--FLUSH & SHIFT

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

See Fig. 06-021

1шт.

27

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

BN98016

O-RING

SAE-16 Buna N

8шт.

Associated Part of Adapter Str, P/N BN21417

1шт.

91

BN24931

TUBE

steel, 3/4" front

4шт.

92

BN24932

TUBE

steel, 3/4" LH, rear

2шт.

93

BN24933

TUBE

steel, 3/4" RH, rear

2шт.

94

BN53959

ELBOW

Fitting - 45° Bulkhead 3/4" JIC

4шт.

95

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

4шт.

96

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

100

BN53691

HOSE

3/4" x 22", high pressure

2шт.

101

BN53694

HOSE

3/4" x 27", high pressure

2шт.

103

BN55105

HOSE

3/4" x 145", high pressure

2шт.

104

BN58123

HOSE

3/4" x 24", high pressure

2шт.

105

BN58110

HYDRAULIC HOSE,19.05mm ID x 774.7mm L

High pressure

2шт.

106

BN58111

HOSE,19.05mm ID x 3530.6mm L

3/4" x 139", high pressure

2шт.

107

BN58112

HOSE

3/4" x 106 1/2", high pressure

2шт.

108

BN58113

HOSE

3/4" x 108", high pressure

2шт.
