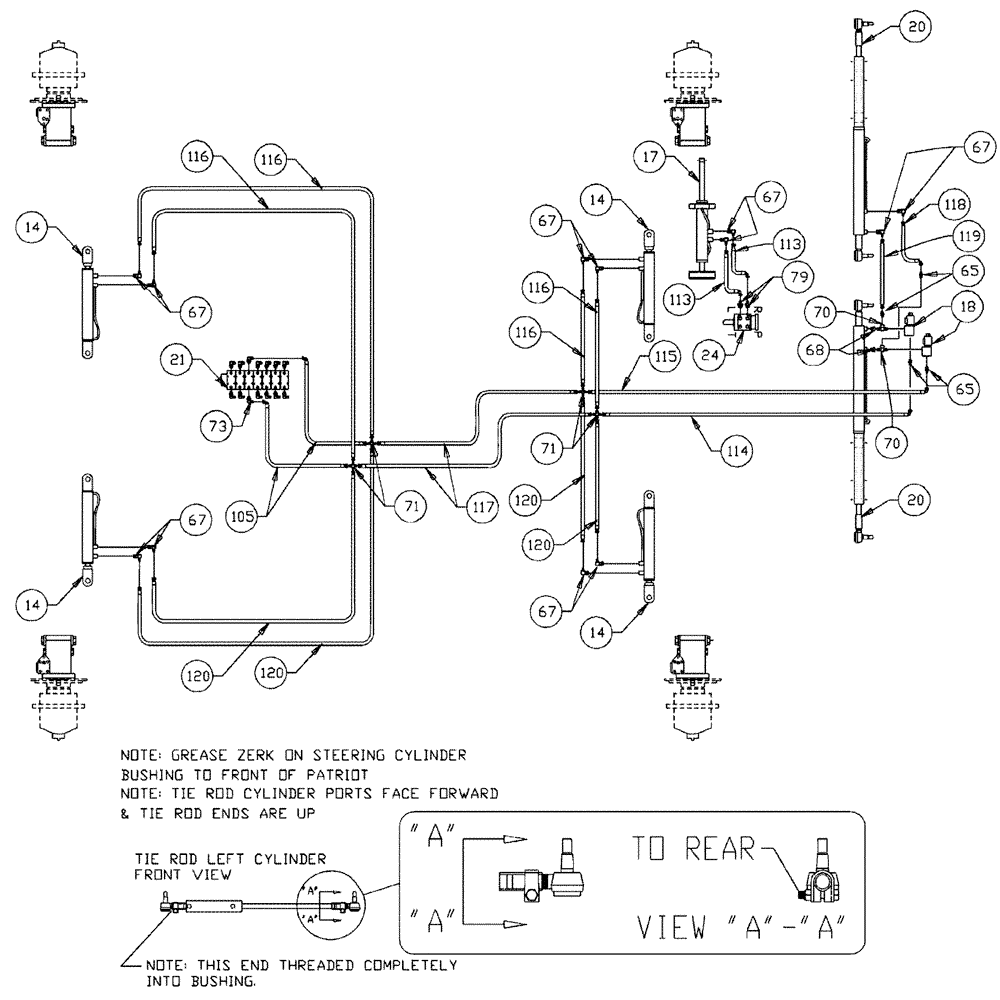

Запчасти Case IH 3150 (06-003) - STEERING, 7-BANK VALVE Hydraulic Plumbing

14

87270926

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.50 x 16 x 1.25

4шт.

See Fig. 07-001

1шт.

17

87270933

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 203.2mm Stroke

Hydraulic, 2.00 x 8.00 x 1.0

1шт.

See Fig. 07-011

1шт.

18

BN306166

SOLENOID VALVE

Assy, w/body

2шт.

BN301705

COIL

12VDC, shift w/ female Packard connector

1шт.

Service Parts for Ref. 18

1шт.

BN98204

O-RING

BUNA-N, for BN29788

1шт.

Service Parts for Ref. 18

1шт.

BN98205

O-RING

TOP-- LARGE

1шт.

Service Parts for Ref. 18

1шт.

BN306168

VALVE BODY

1шт.

Service Parts for Ref. 18

1шт.

20

87270931

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.00 x 16 x 1.25

2шт.

See Fig. 07-012

1шт.

359775A1

END ASSY.

Tie Rod, RH 1"-16 Thread

4шт.

Associated Part of Hyd Cylinder Tie Rod, P/N 87270931

1шт.

BN04851

CLAMP

Tie Rod End, With Bolt

4шт.

Associated Part of Hyd Cylinder Tie Rod, P/N 87270931

1шт.

21

87272373

7 BANK

1шт.

See Fig. 06-014

1шт.

24

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

See Fig. 01-006

1шт.

BN98233

SEAL KIT

FOR ORBITROL -- STEERING CONTROL

1шт.

65

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

4шт.

67

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

13шт.

68

BN51352

BUSHING

1/4-18 x 3/8-18 NPT

2шт.

70

BN53712

TEE

1/4" NPT

2шт.

71

BN54043

ADAPTER

cross, 1/4" jic

4шт.

73

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

BN98019

O-RING

#6

14шт.

Associated Part of Adapter, P/N BN22160

1шт.

79

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

BN98018

O-RING

#8

2шт.

Associated Part of Adapter, P/N BN21249

1шт.

105

BN54161

HOSE,0.25" ID x 52.00", SAE 100R1

2шт.

113

BN53814

HOSE

1/4" x 62"

2шт.

114

BN54155

HOSE,0.25" ID x 33.00", SAE 100R1

1шт.

115

BN54156

HOSE,0.25" ID x 30.00", SAE 100R1

1шт.

116

BN54185

HOSE

1/4" ID x 64" 100 R1

4шт.

117

BN54158

HOSE,0.25" ID x 114.00", SAE 100R1

2шт.

118

BN54159

HOSE,0.25" ID x 28.00", SAE 100R1

1шт.

119

BN53964

HOSE

1/4" ID x 15" 100R1

1шт.

120

BN53604

HOSE

1/4" x 40"

4шт.
