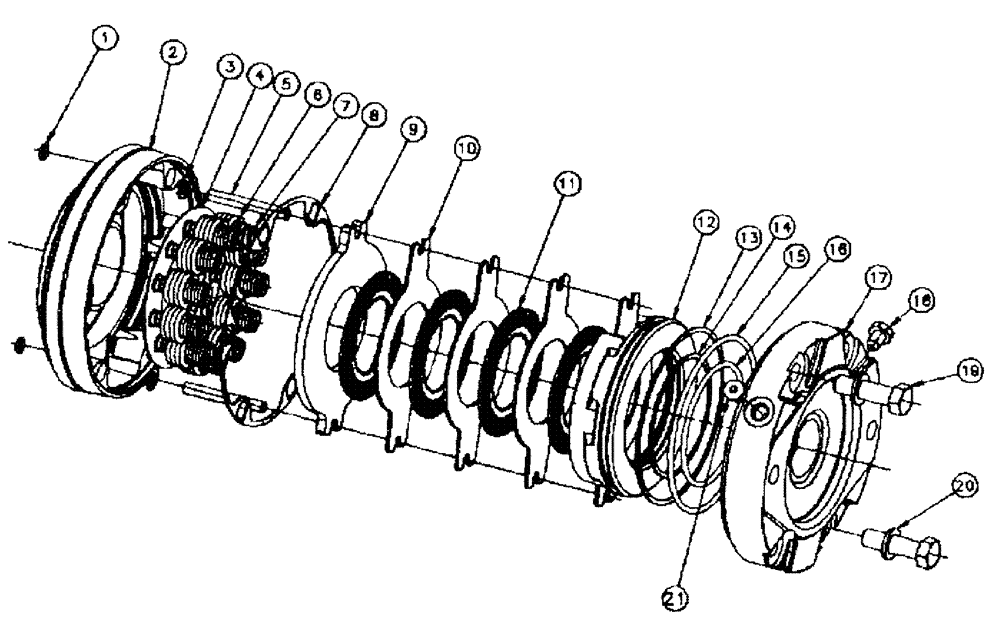

Запчасти Case IH 3150 (05-003) - PARKING BRAKE Hub, Wheel & Tires

BN313467

O-RING KIT

(Incl. Refs. 1, 8, 13, 14, 15, 16 and gasket; not shown)

1шт.

1

NSS

NOT SOLD SEPARAT

TORQUE PIN O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

GASKET

1шт.

13

NSS

NOT SOLD SEPARAT

BACK-UP RING

1шт.

14

NSS

NOT SOLD SEPARAT

BACK-UP RING

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

BN313466

REPAIR KIT

GASKET (BETWEEN BRAKE AND SPINDLE OR COVER) DISKKIT-4 ROTOR (INCLUDES REF 1,3, 5, 6, 7, 9, 10, 11), (NOT SHOWN)

1шт.

1

NSS

NOT SOLD SEPARAT

TORQUE PIN O-RING

2шт.

3

NSS

NOT SOLD SEPARAT

TORQUE PIN PUSH RETAINER

2шт.

5

NSS

NOT SOLD SEPARAT

TORQUE PIN

2шт.

6

NSS

NOT SOLD SEPARAT

SPRINGS

11шт.

7

NSS

NOT SOLD SEPARAT

SPRINGS

11шт.

9

NSS

NOT SOLD SEPARAT

PRIMARY DISC

1шт.

10

NSS

NOT SOLD SEPARAT

STATIONARY DISCS

4шт.

11

NSS

NOT SOLD SEPARAT

ROTATING DISCS

4шт.
