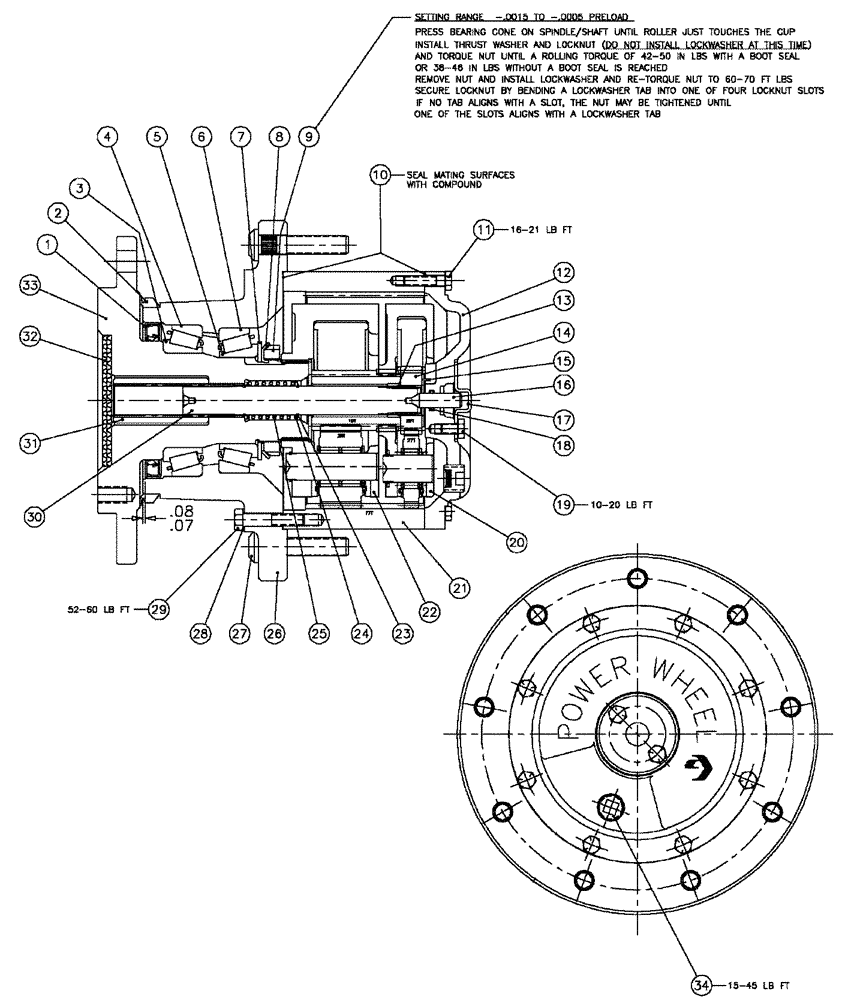

Запчасти Case IH 3150 (05-002) - HUB ASSEMBLY #7,21:1, WO/B Hub, Wheel & Tires

1

BN98723

SEAL

TRASH

1шт.

2

BN98740

SEAL

HUB-MODEL 7

1шт.

3

510892

BEARING CUP,112.71mm OD x 23.81mm W

1шт.

4

BN98738

ROLLER BEARING,73.03mm ID x 30.16mm W

Inner

1шт.

5

513379

BEARING CUP,117.47mm OD x 23.81mm W

Inner

1шт.

6

BN98736

ROLLER BEARING

Outer

1шт.

7

BN98741

WASHER

THRUST

1шт.

8

BN98742

LOCK WASHER

1шт.

9

BN98743

BEARING LOCK NUT

BEARING

1шт.

11

87342647

BOLT

Hex, 5/16"-18 x 1 1/4, G5

8шт.

12

BN98733

COVER

DISENGAGE

1шт.

13

BN98792

RETAINER

RING

1шт.

14

BN67198

SUN GEAR

PRIMARY 21:1 #7

1шт.

15

BN98501

THRUST WASHER

Large

1шт.

16

BN98728

PLUNGER

disengage

1шт.

17

87270244

COVER

DISENGAGE-AUBURN

1шт.

18

BN98729

SEAL

plunger

1шт.

19

87342629

BOLT

Hex, 5/16"-18 x 1/2", G5

2шт.

20

BN67199

CARRIER

PRIMARY ASS'Y -21:1 #7

1шт.

21

BN98744

RING GEAR

7"

1шт.

22

BN98797

CARRIER

SECONDARY # 7

1шт.

23

BN98495

SNAP RING

2шт.

24

BN98496

WASHER

THRUST SPRING BACKUP

2шт.

25

BN98497

SPRING

DISENGAGE

1шт.

26

BN98734

HUB

power

1шт.

27

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

9шт.

28

BN98494

WASHER

flat

18шт.

29

428-630

BOLT,Hex, 3/8" - 24 x 1-7/8", Gr 8

3/8-24 X 1.88, HH, G8

18шт.

30

BN98793

SHAFT

INPUT (NON BRAKE)

1шт.

31

BN98370

COUPLING

NON BRAKE UNIT

1шт.

32

BN313499

PLUG

SHIPPING

1шт.

33

BN98732

SPINDLE

AUBURN

1шт.

34

BN98487

PLUG

magnetic

1шт.

ns

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

BETWEEN WHEEL MOTOR & HUB

1шт.
