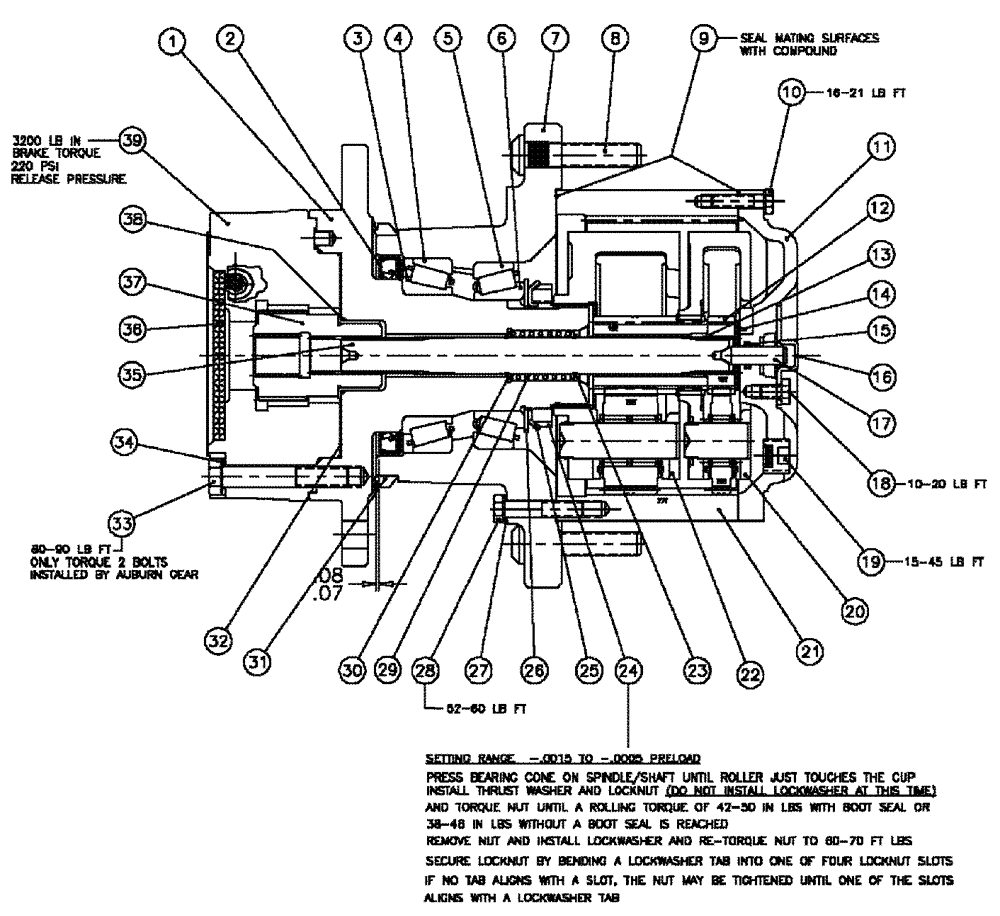

Запчасти Case IH 3150 (05-001) - HUB ASSEMBLY #7,24:1, W/B Hub, Wheel & Tires

1

BN313476

SPINDLE

AUBURN

1шт.

2

BN98723

SEAL

HUB-MODEL 7

1шт.

3

BN98736

ROLLER BEARING

Outer

1шт.

4

510892

BEARING CUP,112.71mm OD x 23.81mm W

1шт.

5

513379

BEARING CUP,117.47mm OD x 23.81mm W

Inner

1шт.

6

BN98738

ROLLER BEARING,73.03mm ID x 30.16mm W

Inner

1шт.

7

BN98734

HUB

power

1шт.

8

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

9шт.

10

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

8шт.

11

BN98733

COVER

HUB

1шт.

12

BN66068

GEAR

PRIMARY SUN

1шт.

13

BN98792

RETAINER

RING

1шт.

14

BN98501

THRUST WASHER

Large

1шт.

15

BN98729

SEAL

plunger

1шт.

16

87270244

COVER

DISENGAGE-AUBURN

1шт.

17

BN98728

PLUNGER

disengage

1шт.

18

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

19

BN98487

PLUG

magnetic

1шт.

20

BN66069

CARRIER

Primary Assembly - 24:1 Ratio (3 Gears-28 Teeth Each) Secondary Sun Gear - 19 Teeth)

1шт.

21

BN98744

RING GEAR

7"

1шт.

22

BN98797

CARRIER

SECONDARY # 7

1шт.

23

BN98495

SNAP RING

2шт.

24

BN98743

BEARING LOCK NUT

BEARING

1шт.

25

BN98742

LOCK WASHER

1шт.

26

BN98741

WASHER

THRUST

1шт.

27

BN98494

WASHER

flat

18шт.

28

428-630

BOLT,Hex, 3/8" - 24 x 1-7/8", Gr 8

3/8-24 X 1.88, HH, G8

18шт.

29

BN98497

SPRING

DISENGAGE

1шт.

30

BN98496

WASHER

SPRING BACKUP

2шт.

31

BN98740

SEAL

TRASH

1шт.

32

BN313470

GASKET,0.76mm Thk

Auburn

1шт.

33

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

34

BN313500

WASHER

flat

2шт.

35

BN98794

SHAFT

INPUT (BRAKE)

1шт.

36

BN313499

PLUG

SHIPPING

1шт.

37

BN313528

COUPLING

AUBURN

1шт.

38

BN313471

FLANGED BEARING

Flg. Sleeve

1шт.

39

BN313465

BRAKE ASSY.

1шт.

See Fig. 05-003

1шт.

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

36шт.

Not Shown

1шт.
