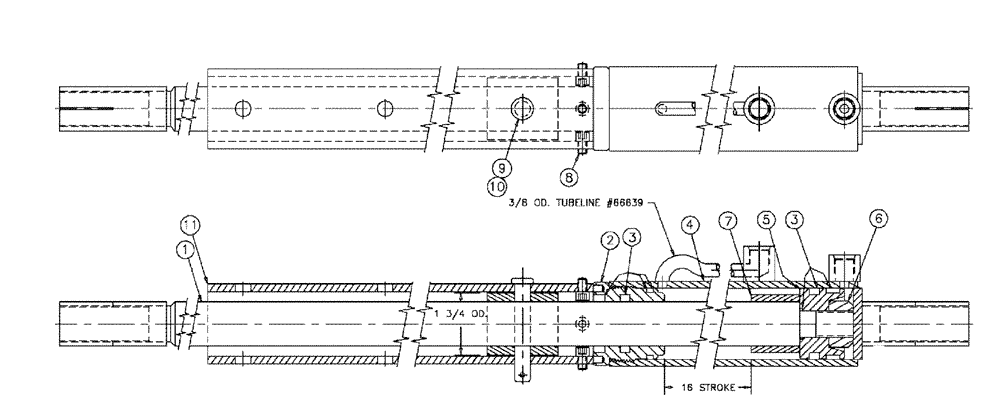

Запчасти Case IH 3150 (07-012) - TIE ROD Cylinders

1

BN98705

SHAFT

1шт.

2

BN98338

1шт.

3

BN68490

SEAL KIT

1шт.

4

BN98706

TUBE

1шт.

5

BN98339

1шт.

6

BN98093

LOCK NUT

1шт.

7

BN98707

BLOCK

stroke

1шт.

8

BN98703

SCREW,1/4" - 20 x 3/8"

1/4-20 X 3/8 SHCS

4шт.

9

BN98701

PIN

7/16"

1шт.

10

BN98702

COTTER PIN

HAIR

1шт.

11

BN98649

TUBE

adjustable cylinder stop

1шт.

87270931

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.00 x 16 x 1.25

1шт.
