Запчасти Case IH 3150 (01-003) - GAUGES, ACCESSORIES Cab Interior

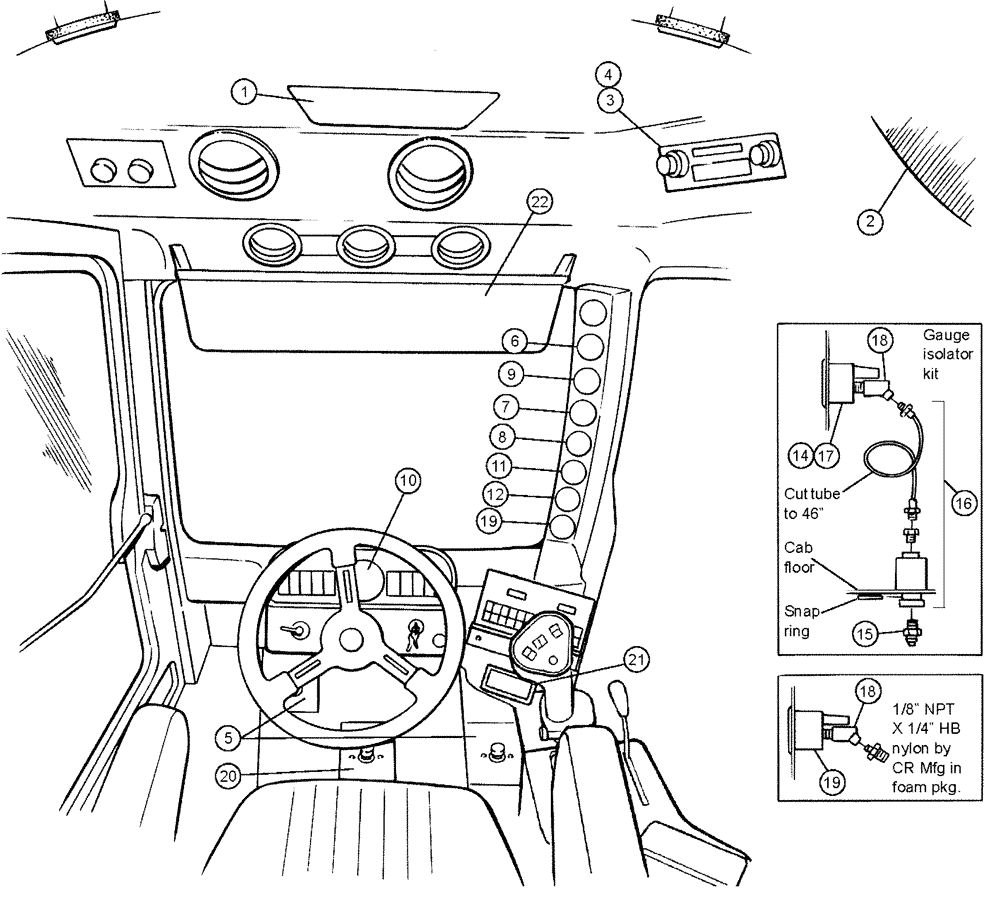

Схема запчастей Case IH 3150 - (01-003) - GAUGES, ACCESSORIES Cab Interior
21
15
8
19
4
7
3
18
19
20
10
22
14
12
1
16
11
6
9
18
17
2
5

Артикул

Название

Примечание

Количество

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

1a

BN300876

BULB

Dome, 12 volt

1шт.

Service Parts for Ref. 1

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN323961

DIN MOUNT, SEE FIG. 01-014

1шт.

4

BN323960

PKG, RADIO, SPEAKERS, ANT, SEE FIG. 01-015

1шт.

5

BN29522

SWITCH

LH Side, Dimmer, Floor Mount, RH Side Boom Section Valve

2шт.

5a

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part of Pkg, Switch Dimmer Floor Mount, P/N BN29522

1шт.

5b

280129

NUT,1/4"-20

2шт.

Associated Part of Pkg, Switch Dimmer Floor Mount, P/N BN29522

1шт.

5c

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

Associated Part of Pkg, Switch Dimmer Floor Mount, P/N BN29522

1шт.

5d

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part of Pkg, Switch Dimmer Floor Mount, P/N BN29522

1шт.

5e

BN50205

BOLT

1/4"-20 x .625, TH

4шт.

Associated Part of Pkg, Switch Dimmer Floor Mount, P/N BN29522

1шт.

6

BN67301

FUEL GAUGE

LEVEL 12V. N.G.

1шт.

6a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 6

1шт.

7

BN67302

ELECTRICAL GAUGE

TEMP 280 DEG. 12V NG

1шт.

7a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 7

1шт.

8

BN67303

ELECTRICAL GAUGE

OIL PRESS. 100 PSI

1шт.

8a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 8

1шт.

9

BN67304

ELECTRICAL GAUGE

VOLT 12VDC/10-16

1шт.

9a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 9

1шт.

10

87530051

TACHOMETER

Hour

1шт.

10a

326944A1

HOURMETER

LCD, 12V

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

11

BN68268

GAUGE

Boom pressure, Incl. Ref items 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Sparge pressure, Incl. Ref items 15, 16, 17 & 18

1шт.

12a

BN309417

FITTING

HB, 1/8 MPT X 1/4 HS, NYL.

1шт.

Parts of Assy, Gauge Sparge Pressure, P/N BN68269

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

Bulb, P/N BN301819 (1.06" Long), must Be Used in Pressure Gauges Because of Internal Interference with a Longer Bulb

1шт.

14a

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts for Ref. 14

1шт.

15

BN441001

ADAPTER

PIPE, 37 FLARE 06-04

2шт.

16

BN67300

ISOLATOR

GAUGE KIT

2шт.

17

BN304843

GAUGE

PRESSURE, SPARGE

1шт.

Bulb, P/N BN301819 (1.06" Long), must Be Used in Pressure Gauges Because of Internal Interference with a Longer Bulb

1шт.

17a

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts for Ref. 13

1шт.

18

BN68256

ELBOW

45 DEG. 1/8 NPT, FEMALE

3шт.

19

BN67307

ELECTRICAL GAUGE

FOAM PRESS. 0-80

1шт.

Bulb, P/N BN301819 (1.06" Long), must Be Used in Pressure Gauges Because of Internal Interference with a Longer Bulb

1шт.

19a

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts for Ref. 19

1шт.

20

BN68440

SWITCH

Traction Assist

1шт.

20a

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

2шт.

Associated Part of Switch Traction Assist, P/N BN68440

1шт.

20b

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Associated Part of Switch Traction Assist, P/N BN68440

1шт.

20c

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part of Switch Traction Assist, P/N BN68440

1шт.

21

BN66127

ASH TRAY

1шт.

22

NS

NOT SERVICED

Telescoping Group

1шт.

22a

82004428

SUN CURTAIN

Visor

1шт.

Associated Part of Visor, Telescoping Group

1шт.

22b

BN304238

MOUNTING PARTS

BRACKET

2шт.

Associated Part of Visor, Telescoping Group

1шт.

22c

BN314731

BRACKET

Visor, RH

1шт.

Associated Part of Visor, Telescoping Group

1шт.

22d

BN314732

BRACKET

Visor, LH

1шт.

22e

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

22f

BN312062

MOUNTING PARTS

BENT BRACKET

1шт.

22g

BN305094

HARNESS

CAB GAUGE ASSY

1шт.
