Запчасти Case IH 3150 (01-001) - CONTROL PANELS Cab Interior

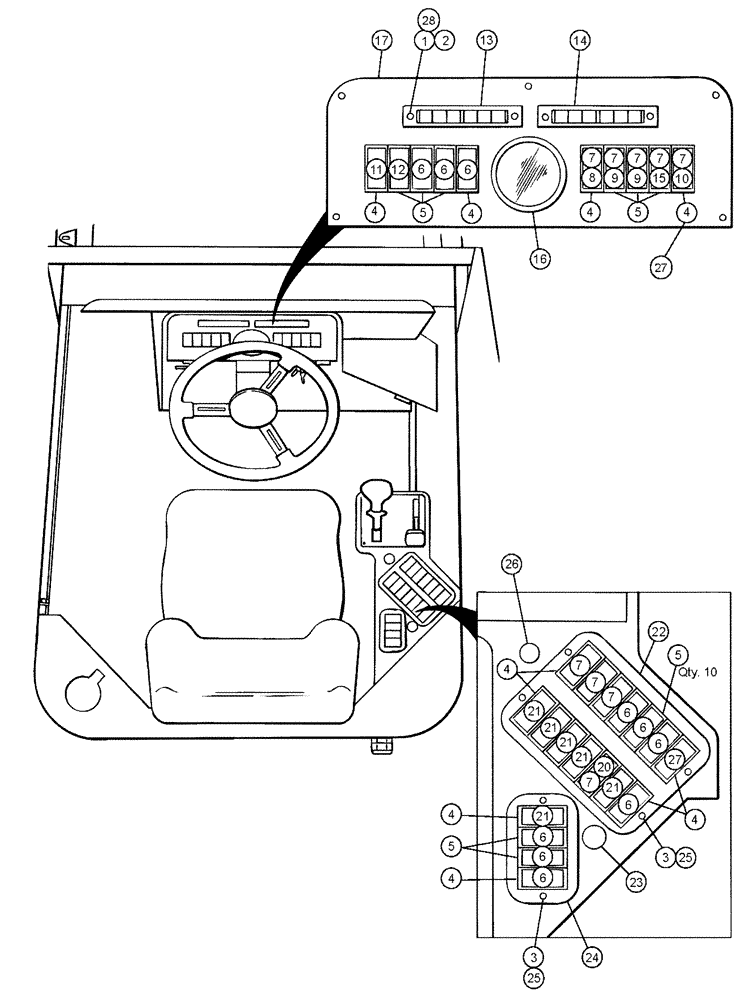

Схема запчастей Case IH 3150 - (01-001) - CONTROL PANELS Cab Interior
27
6
21
5
21
6
6
8
3
5
4
7
7
27
12
25
21
23
6
21
17
4
2
4
21
4
6
24
11
4
6
7
6
7
4
26
7
1
15
6
21
6
20
13
16
22
1
9
4
10
7
6
5
7
2
9
3
4
5
28
7
7

Артикул

Название

Примечание

Количество

1

86977693

NUT,Serrated, #8 - 32, Gr 5

#8-32

4шт.

2

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

4шт.

3

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

11шт.

4

BN65931

PANEL

Switch Mount, End

12шт.

5

BN65932

PANEL

Switch Mount, Middle

18шт.

6

BN65933

PLUG

Switch Mount Panel

8шт.

7

BN65934

SWITCH

Single Pole, On-Off

12шт.

8

BN65935

LIGHT SWITCH

Actuator (Road lights)

1шт.

9

BN65936

ROCKER

Actuator - Floodlight Switch

2шт.

10

BN65937

ROCKER

Actuator - Domelight Switch

1шт.

11

BN311377

SWITCH

ASSY, PARK BRAKE

1шт.

12

BN65940

SWITCH

W/Handle Off-On-On (Wiper)

1шт.

13

BN65943

INDICATOR LIGHT

Cluster, LH (6)

1шт.

BN301816

BULB

12V

6шт.

Service Parts for Ref. 13

1шт.

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

Service Parts for Ref. 13

1шт.

14

BN65944

INDICATOR LIGHT

Cluster, RH (6)

1шт.

BN301816

BULB

12V

6шт.

Service Parts for Ref. 14

1шт.

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

Service Parts for Ref. 14

1шт.

15

BN65946

ROCKER

Hazard Warning

1шт.

16

87530051

TACHOMETER

Hour

1шт.

BN67305

TACHOMETER

0-4000

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN301813

BULB

12 V

1шт.

Service Parts for 87389559

1шт.

BN301814

SOCKET

Light

1шт.

Service Parts for 87389559

1шт.

BN301815

LIGHT

Filter, Lamp, Green

1шт.

Service Parts for 87389559

1шт.

17

BN68649

INSTRUMENT PANEL

Dash

1шт.

20

BN65938

ROCKER

Actuator - Switch

6шт.

21

BN65942

SWITCH

W/Handle On-Off-On

6шт.

BN302318

TOOL

Switch Removal

1шт.

Associated Part of Switch W/handle On-off-on, P/N BN65942

1шт.

22

BN310117

PLATE

MOUNT

1шт.

24

BN66267

PLATE

Mount, 14 GA Hrs, 3.37 x 5.62

1шт.

25

BN319894

FASTENER

"U" , #8 SCR/.12 panel

6шт.

26

342465A1

SWITCH

range select

1шт.

342466A1

BASE

Mounting Range Sel

1шт.

Parts of Terminal Cover Assy, P/N 342465A1

1шт.

342468A1

CONTACT PLATE

CONTACT N.O.

1шт.

Parts of Terminal Cover Assy, P/N 342465A1

1шт.

342467A1

CONTACT PLATE

CONTACT N.C.

1шт.

Parts of Terminal Cover Assy, P/N 342465A1

1шт.

342469A1

KNOB

RANGE SELECT

1шт.

Parts of Terminal Cover Assy, P/N 342465A1

1шт.

27

BN319895

FASTENER

#8SCR/.13 PANEL

5шт.

28

493-41017

LOCK WASHER,Ext, #8

4шт.

Выбрано товаров: 51
