(10-003) - EXTERIOR DECALS - INFO GROUP

Запчасти Case IH 3150 (10-003) - EXTERIOR DECALS - INFO GROUP (13) - DECALS

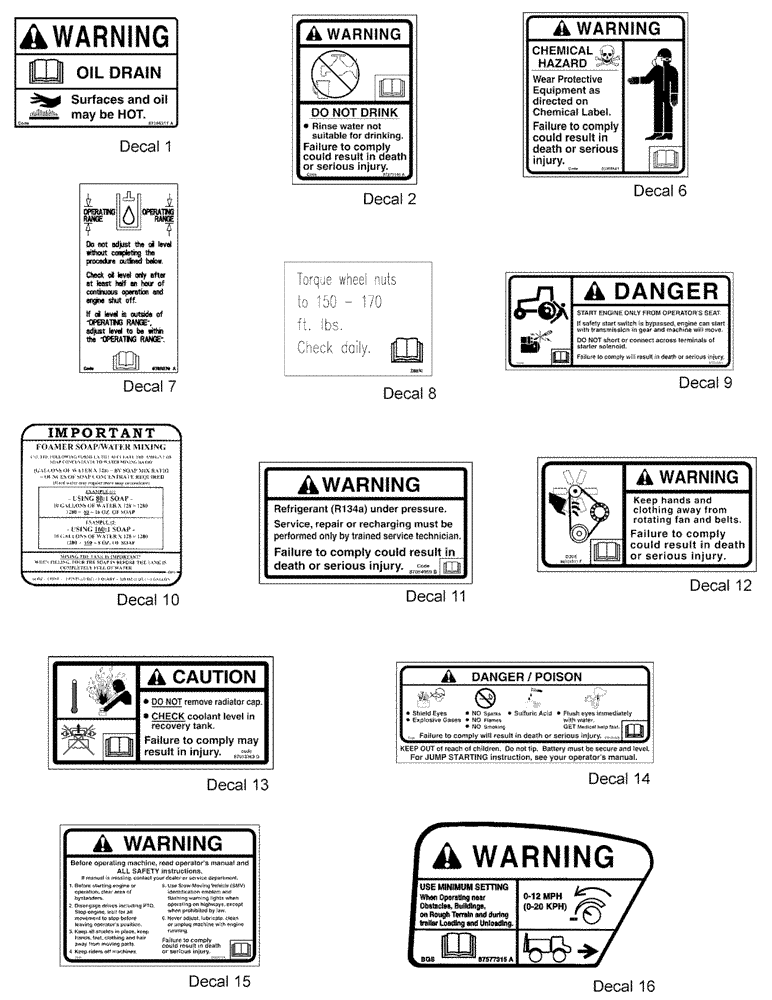

Схема запчастей Case IH 3150 - (10-003) - EXTERIOR DECALS - INFO GROUP (13) - DECALS
2
12
13
15
6
7
16
8
14
11
9
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266217

DECAL

Oil Drain

1шт.

2

87271146

DECAL

DO NOT DRINK

1шт.

311863A1

REFLECTOR

Retroreflective Red

4шт.

Not Shown

1шт.

311864A1

REFLECTOR

Retroreflective Amber

4шт.

Not Shown

1шт.

311865A1

REFLECTOR

fluorescent orange

2шт.

Not Shown

1шт.

6

333088A1

DECAL

protective clothing

1шт.

7

87611379

DECAL

Hydraulic Oil Level

1шт.

8

336897A1

DECAL

torque wheel nut

1шт.

9

87033529

DECAL

Danger, Start Engine Only From Operator's Seat

1шт.

10

BN63915

DECAL

FOAM MARKER TANK

1шт.

11

87054969

WARNING DECAL

Refrigerant Under Pressure

1шт.

12

86501511

WARNING DECAL

Sign, Fan

1шт.

13

87013363

DECAL

Caution, Radiator Cap

1шт.

14

87054970

DECAL

Danger/Poison, Battery

1шт.

15

86622073

WARNING DECAL

sign

1шт.

16

87577315

DECAL

speed, safety

1шт.
